Off Grid Solar Inverter
portable solar generator 500w-3kw
Product Specification:- Brand Name : TANFON SOLAR
- Model Number : solar inverter 5kw
- DC voltage : 48V
- Output voltage : 110V/220V
- Advantage : German Technology
- Certificate : ISO, ETL, TUV, CE, RoHS
- Payment : T/T, L/C, Paypal, Western Union
You May Like
TANFON advantages:
1. The most competitive price in the whole network
2. 12 years of installation experience, with global service centers
Solar power generator advantages:
1. Small size, light weight, environmental protection, no noise, maintenance-free, portable.

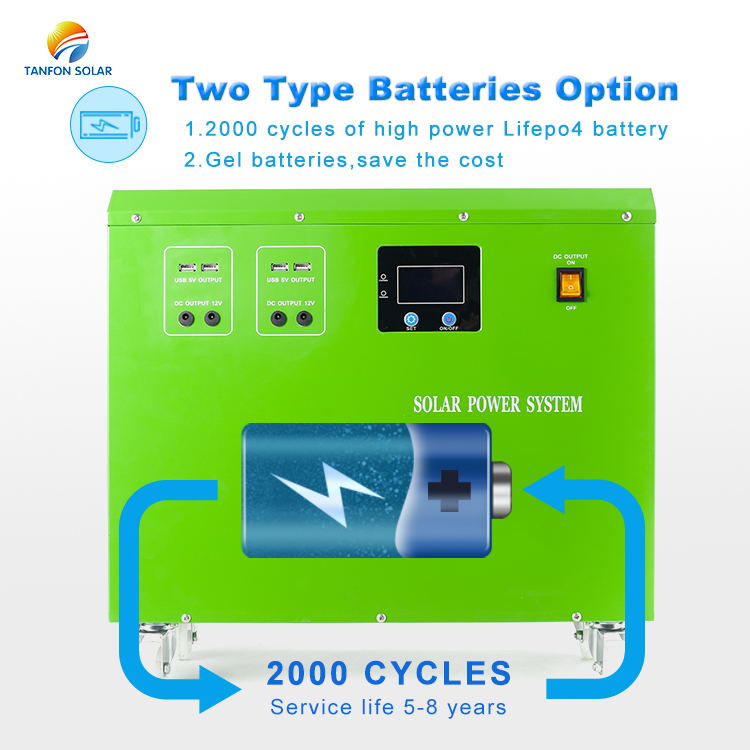

2. Gel battery and lithium battery optional,service life 5-8 years
3. Universal socket, suitable for all countries
4. Easy to install, even an 80-years elder can install well.

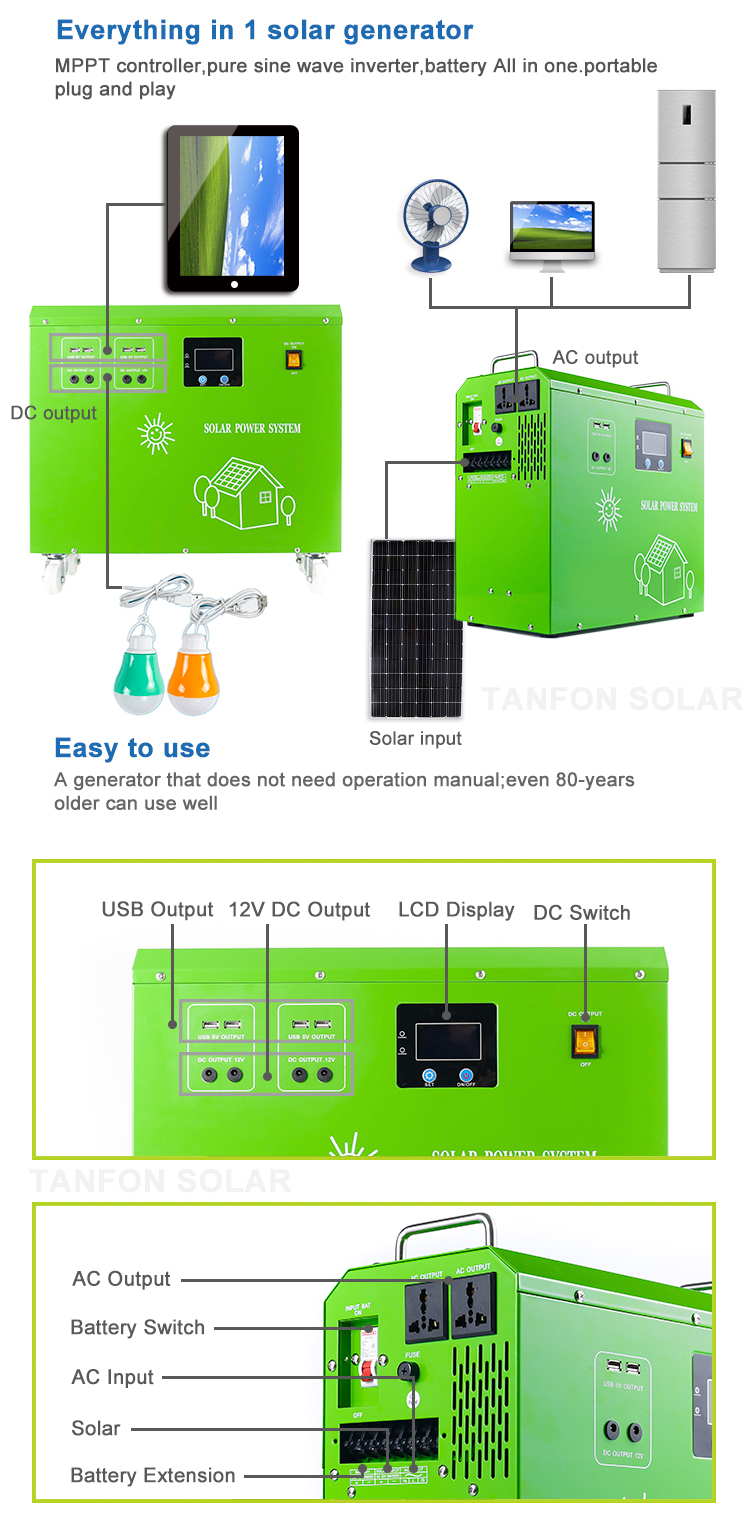

5.Everything in 1 solar generator MPPT controller,pure sine wave inverter,battery All in one.portable plug and play
6.For camping/boating/RV/Home use
Features and function
1.for light, radio, DVD, TV set, fans, freezer, computers, small hand-drill, and the other house appliance
2.Rate power 500w-3kw,pure sine wave output
3.MPPT solar charge controller,15A grid charger,with Gel battery
4.The mains supply mode/energy-saving mode/battery mode can be set for flexible
5.Convenient and practical 5VDC-USB output port and 12VDC output port
6.Overcharge protechon and overdischarge protection for a longer battery life
7.Safe and reliable with intelligent exhaust fan control
8.Overall automatic protection and alarms induding AC output overload protection . short arcuit protection
| Model | SCL-3000W |
| Battery Voltage | 24V |
| Inverter | |
| Rated power | 5000VA/3000W |
| Input Voltage Range | 140-275V |
| Input Frequency | 45-65HZ |
| Output Voltage | 220VAC |
| Output Frequency | 50/60HZ |
| Output Wave | Sine Wave |
| Speficifation Of Built-in Lifepo4 Battery | 24V200AH |
| Communication | RS232 |
| Working model | 01:City power priority 02:Energy Saving mode 03:Solar Power Priority |
| Solar Input | |
| Max.PV power | 1440W |
| Max.PV voltage | ≤50VDC |
| Range of charging Voltage | 20-50VDC |
| Rated charge current | 30A |
| Voltage For Overcharge Protection | 28.4VDC |
| Voltage For Overcharge Recovery | 28VDC |
| Voltage For Floating Charge | 27.4VDC |
| DC Output | |
| Voltage For High Voltage Protection | 32VDC |
| High Voltage Recovery Voltage | 30.2VDC |
| Low Voltage Recovery Voltage | 25.2VDC |
| Low Voltage Protection Voltage | 22VDC |
| 5V DC USB Output | 2pcs*2A |
| 12V DC Output Ports | 2pcs*2A |
| PHYSICAL | |
| Heat Dissipation/Cooling | Temperature control by intelligent exhaust fan |
| Display | Digital LCD |
| Electricity Charging | YES |
| Extermal Size:W*D*H(mm) | 475*455*365mm |
| Package Size:W*D*H(mm) | 525*545*415mm |
| G.W.(Gross Weight) | 56kg |
After sales service:
All inverters are free to send new spare boards within the warranty. For more services, please contact our team
