step to install inverter in solar system
Published by TANFON SOLAR July 06,2020

Many customers do not know how to set the solar system inverter, here is the step to set up the inveter:

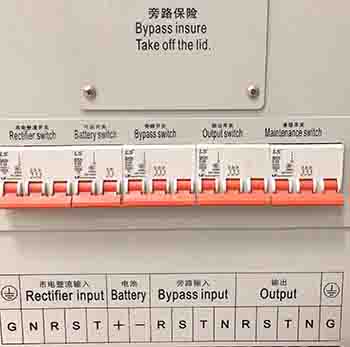

1. TURN OFF

all the breaker

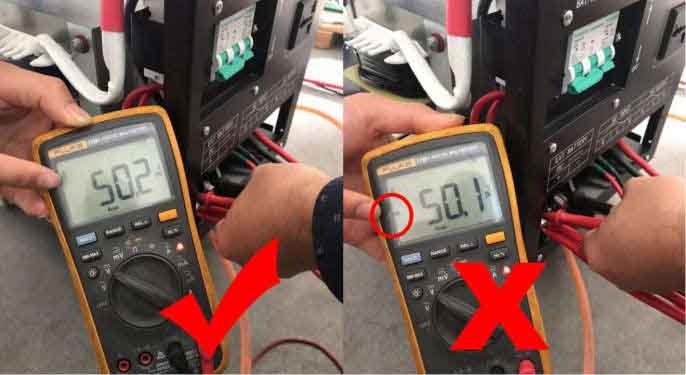

1.Test the battery input polarity.

2.Test the voltage 96v ±10%

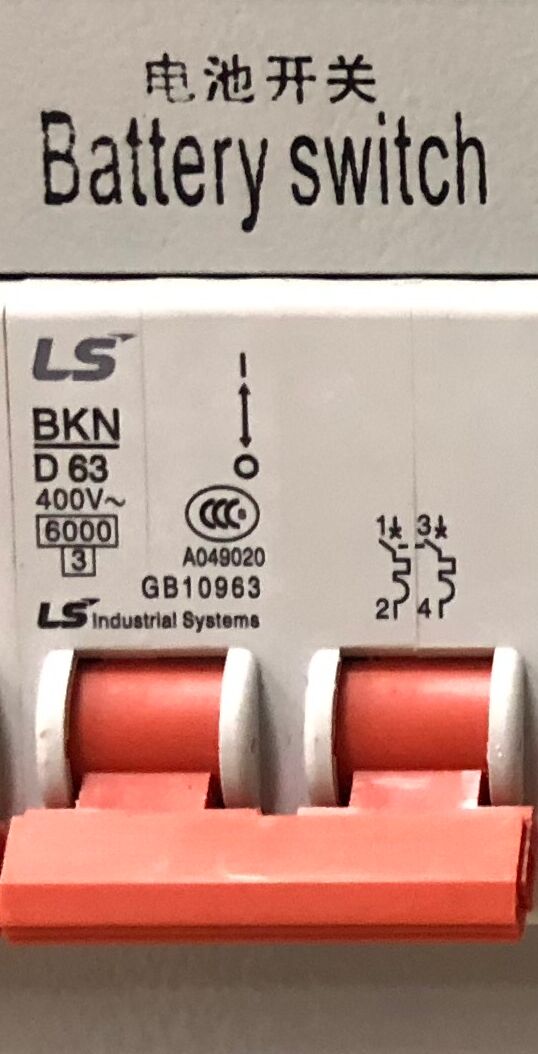

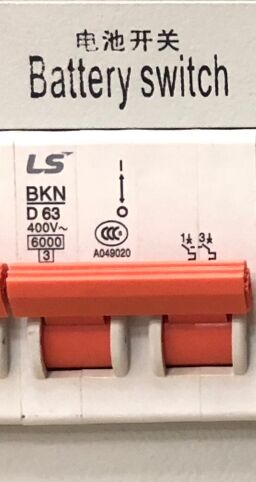

4. Turn on the battery breaker

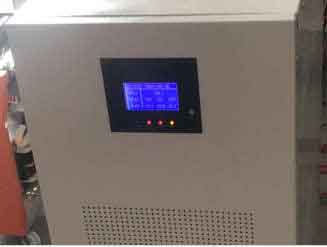

                                                             Inverter starts automatically

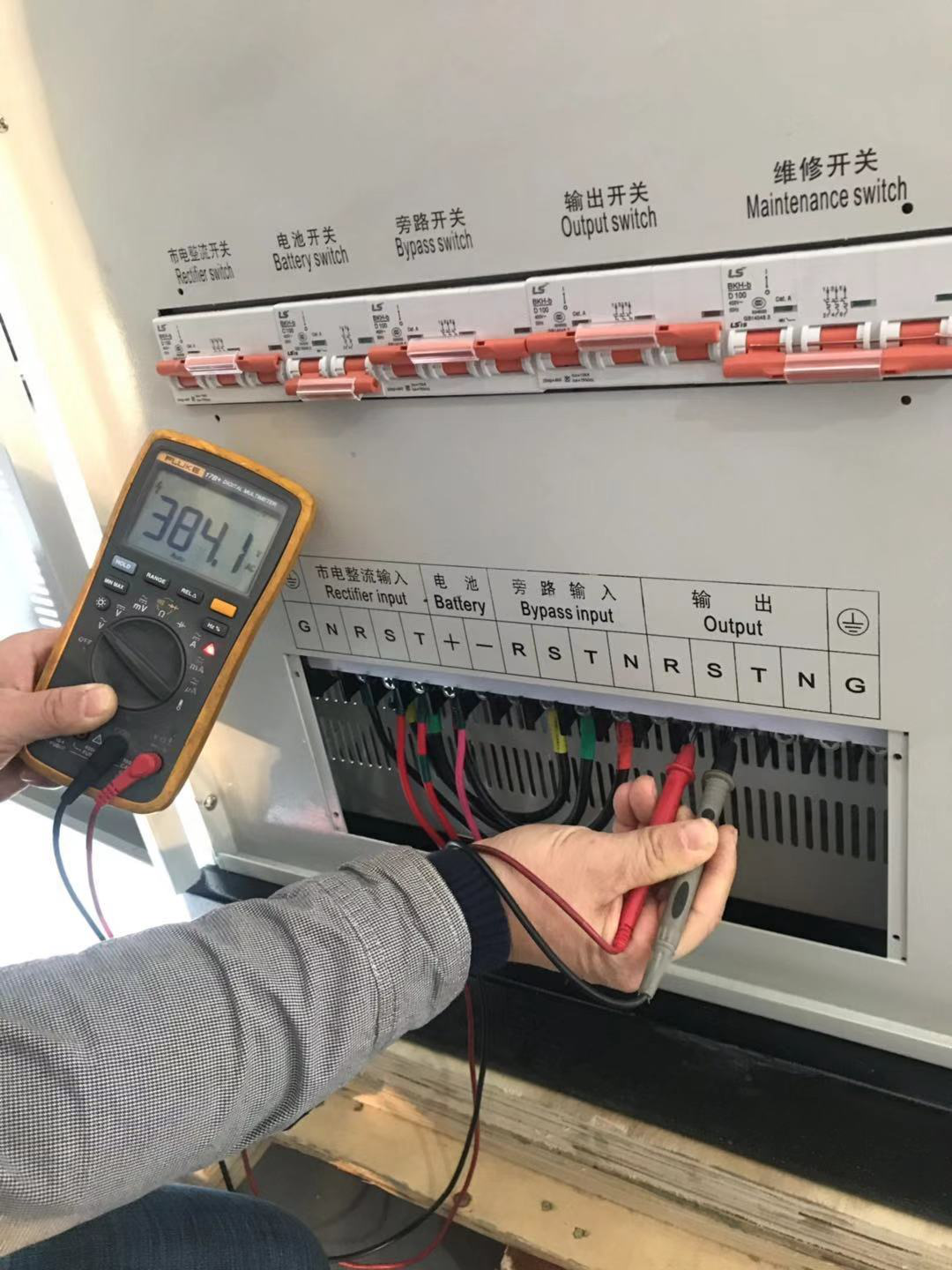

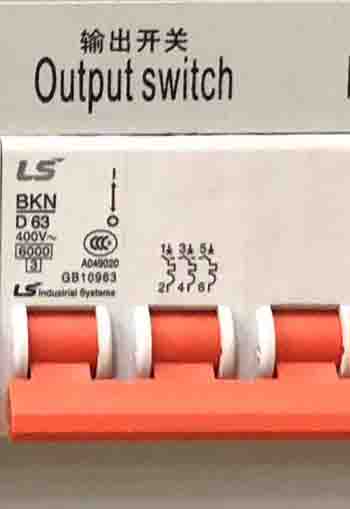

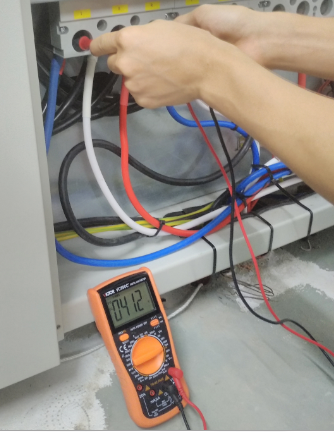

5.Turn on the output breaker, test the voltage 380v/415v.

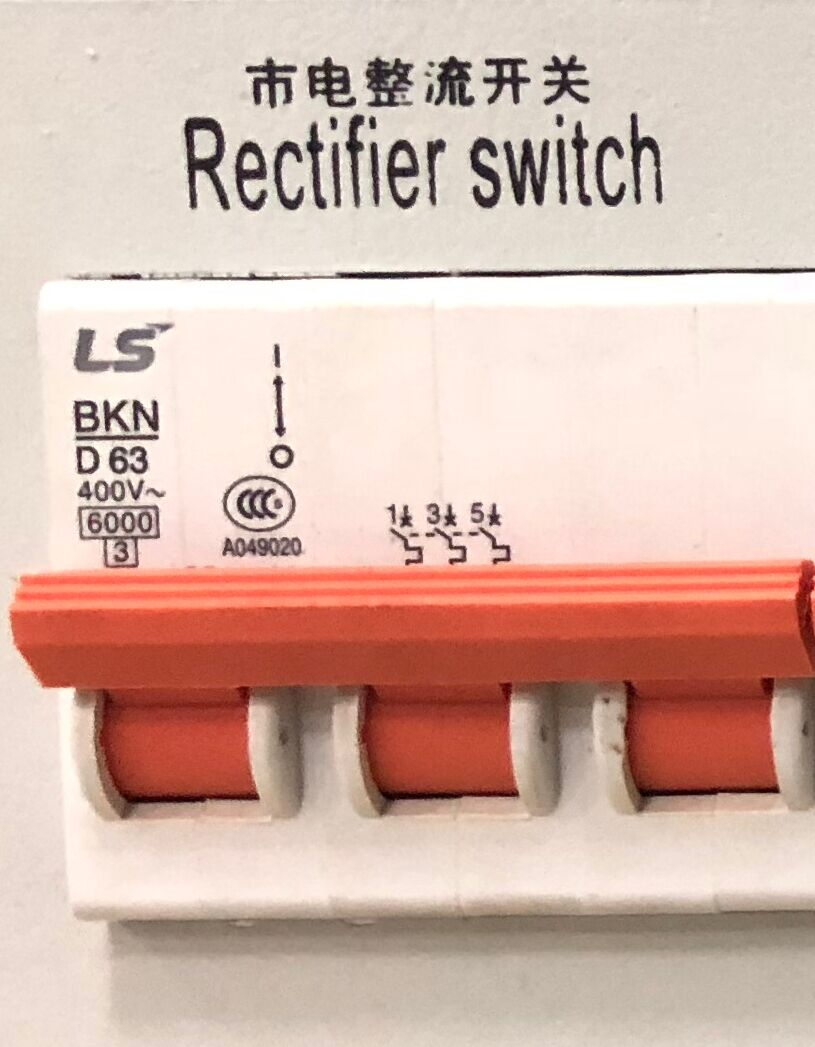

6.Connect city grid to inverter input breaker, test each phase voltage

                                                            Each phase voltage should be same,

                                                            turn on the input breaker



 7.Turn off all city grid input breaker

  8.Turn off output breaker           9.Turn off battery breaker

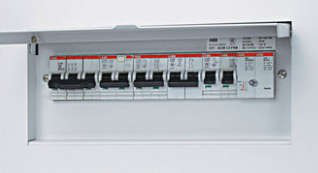

10. Inverter output connect to main breaker



         11.Turn on the battery breaker
12.Turn on input breaker
13.Turn on the output breaker
14.Turn on the main breaker
15.Turn on home appliance one by one
