solar power system

wind&solar hybrid system 1kw-30kw

Product Specification:
  • Brand Name : TANFON SOLAR
  • Model Number : wind solar hybrid system 10kw
  • DC voltage : 96V
  • Output voltage : 110V/220V
  • Advantage : German Technology
Inquiry Now
Product Details
One-stop service
Customer Feedback

 Factory introduce:

Who we are?

Tanfon is TOP10 solar power system project factory in china

What we do?

Expert of  home system,industrial solar power system since 2007 .Engineer have been to more than 32 countries to install 10000+ Successful project cases

How we do ?

Tanfon solar powered generator--German technology, Chinese price, Global service

1).Our IGBT inverter SCR is used German SEMIKRON technology, with Germany standard and quality.

2).Our Chinese factory is mainly responsible for the supply chain management and production

3).Our Global service in Thailand,Kenya,Senegal,Mozambique,will build 120 service centers all over the world. Give strong after-sales service in Local



After 12 years of deep cultivation, we have successfully helped 28 customers to grow up and cooperate together to develop the local market more comprehensively.

Specializing in installing projects from design, detailing, fabrication to erection, having continue cooperation with engineers, exclusive agents and the foreign business partners, we are now sincerely hoping to join hands with you to create a better future together at the principle of win-win cooperation

TANFON WSH10KW hybrid power system: 5000w solar + 5000w wind

Solar panel power: 5000W + Wind turbine power: 5000W

Suitable for daily power consumption: 40-45KWH    Allowable Max Loads power: 10KW

Residential wind turbine (Qty: 1pc)

wind turbine





Model FD-5000
Rated power 5KW
Starting wind speed 4m/s
Cut-in wind spped 4m/s
Rated wind speed 13m/s
Security wind speed 60m/s
Rated DC voltage 120V
Rated speed 260r/m
Rotor diameter 5150mm
Protection Electromagnetic torque control and electricity brake
Type 3phases permanent magnetism synchronization generator
Blade material Extra-strong fiber glass
Packing material Plywood box and foam material
Generator weight(kg) 150KG

Free stand tower

Height: 9m tower

Residential wind turbine pole, it helps fasten wind generator in safe altitude. Use steel material with rust prevention.

Easy to install

wind tower

wind solar hybrid system

Cell type: mono( polycrystalline, optional )

Max power :340w

Vmp:36V  Voc:43.2V  Imp 8.67A

Size : 1956*992*40mm

Glass:3.2mm Tem pered

Connect way:5 pcs panels in series as a string,3 strings in parallel

  1. PV bracket: Stainless steel;(ground or roof rack)

PV combiner(panel connect to controller)

Solar panel kit PV combiner (Qty: 1pc)

Model: H4T-120v Multiple PV strings inputs

Simplify wiring between PV array and controller, protections  to controller, Prevent hot spot effect

Wide range of DC input voltage

Reliable thunderstorm & surge protection

combiner

Wind solar hybrid system controller (QTY: 1pc)

Input 5000W solar power + 5000W wind power

DC 120V input; MPPT intelligent control

Protection Function: Solar reverse charge protection , Solar reverse connection protection, Battery-over-charge-protection, Battery-reverse connection protection, Lightning protection.

Wind solar hybrid system Battery (QTY: 20pcs)

Capacity: 12V/200AH, full sealed wind power gel battery

Service life: 6-8 years  Size: 522*240*219mm

Connect way: 8pcs connect in series connect to inverter

solar wind system

solar wind inverter

Wind solar hybrid system inverter (QTY: 1pc)

Rate output Power: 10KW pure sine wave

DC: 120v; AC: 110v or 220v

With AC charger build-in Protection against overload, short circuit, discharger, etc.

Double protection, import MOS tube and optocoupler

Cable (QTY: 1 set)

1) 20pcs 16mm2*35CM battery cable connect

    4pcs 16mm2*1M battery cable connect

2) 6mm2 PV cable 100M,16mm2 wind cable 50M

3) terminals and MC4

wind solar hybrid system cable
solar wind hybrid system

Solar Panel Rack (Quantity: 1 set)

Slope Roof or Flat roof or Ground (option)

including complete fittings

wind load: 55m/s, snow load:1.5kn/m2

structure: Anodized Aluminum + stainless steel

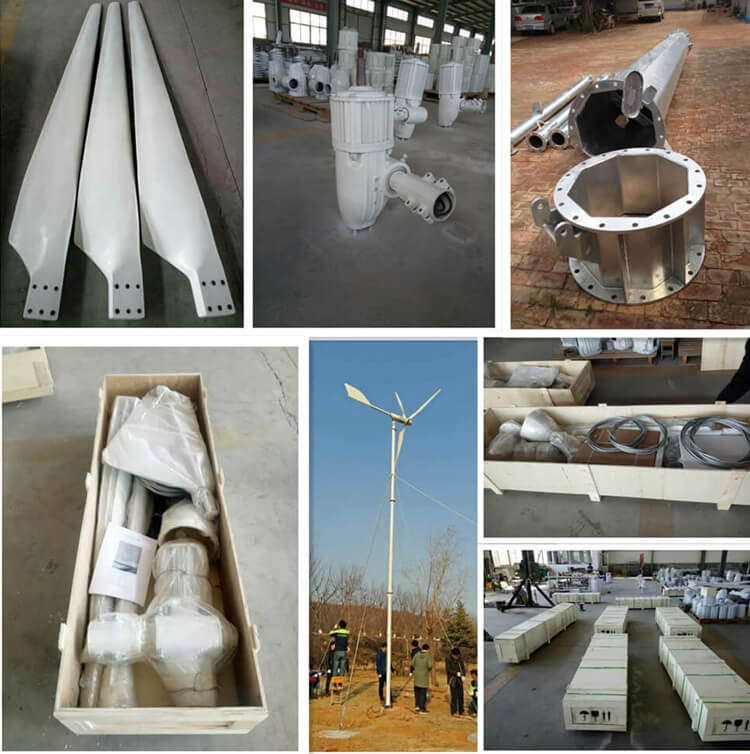

Residential Wind Turbine Generator Parts

 wind turbine kits

Residential wind turbine Features:
1. Rare earth permanent-magnet generator
2. Small vibration and tiny friction, stable rotation in higher speed
3. Streamlined wind turbine body and blade outline design
4.Blades have 2 kinds, 300w-1kw for high-rigidity FRP materials and blades are dynamic-balanced
5. Noise level below 55dB around the wind turbine tower
6. State of the art, workmanship and beautiful appearance
7. Use magnetic saturation technology, with 20years designed life;
8. Select high quality bearing, free to maintenance;
9. Anti-twist device, generator can whirl in each direction
10. Anti strong wind, the blade protect itself automatically,
11. Supply matched controller/inverter, make the system more stable.

What's more?

Coated tempered glass replace previous tempered glass, power can improve 5 to 10 watts.

Coated glass can effectively reflect the infrared, Reduce the working temperature of the component, thus reducing the power loss of the component and reducing the influence of the high temperature on the service life of the component raw material. At the same time a large number of UV absorption, Reduce UV damage in EVA and backplane raw materials. reduce UV on the EVA, the backplane of the raw material damage.

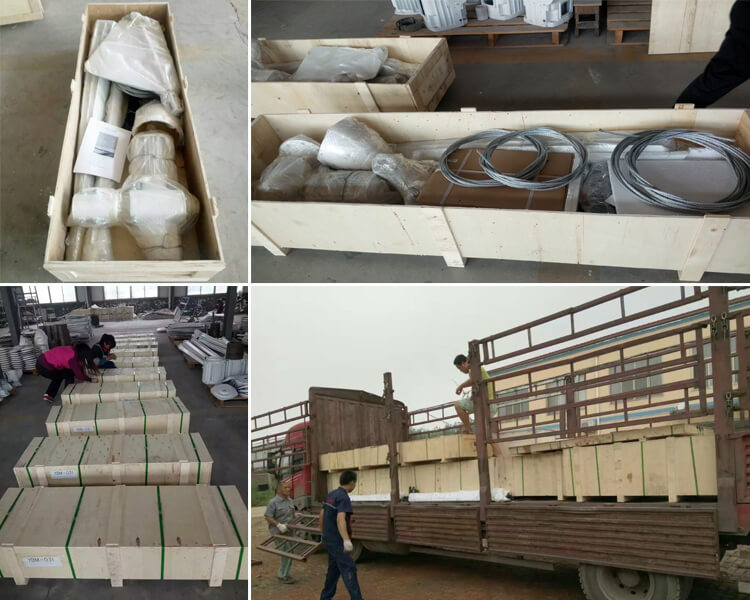

TANFON Solar Wind Hybrid System Packing

wind turbine

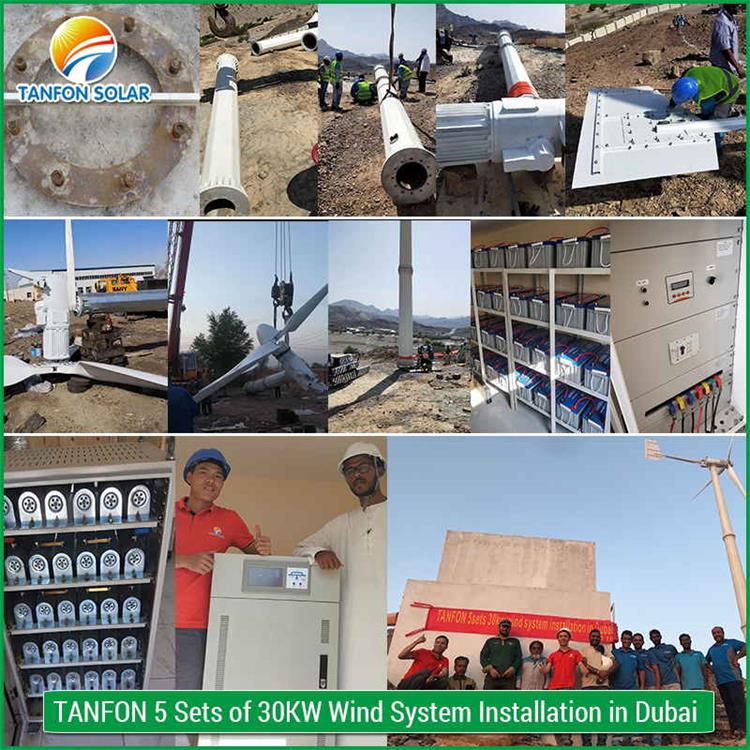

Tanfon installation and project case:

wind solar hybrid system

FAQ

Q1: If I want to buy a solar wind hybrid system, what details I need pay attention to?

A: See if the wind speed can reach the starting speed of the residential wind turbine; the total power loads you want to carry.

Q2: For home use, which one is better?

A: Normally we sell 5kw & 10kw solar wind hybrid system for home use.

Q3: What kind of tower can i choose?

A:Guy cable tower & Stand Alone Tower optional

Q4: How many days for delivery?

A: The 10kw solar wind hybrid system normally for 10days. quantity order need about 25days.

Q5: What kind of package?

A: Solar and wind energy products, Export Standard Packing: suitable for tough handing and transport

Q6: About the payment?

A: We accept T/T, Western Union and Alibaba Trade Assurance (prefer to this one)

    30% advance, 70% balance before shipment, if total cost more than USD50000, accept L/C

Certification supports us

wind generator certificate

We accept OEM and small trial orders of solar wind hybrid system, residential wind turbine, contacting with us now for more information. All inquiries will be replied with in 24 hours.

Quality is our culture, with us, your business in safe, your money in safe.
