5kw Three 3 phase 415 volt 50 hz  ON Grid connected systems

Tanfon Supply: Free site survey, design, production, installation, maintenance with our sophiscaticated one-stop service.

Who we are?

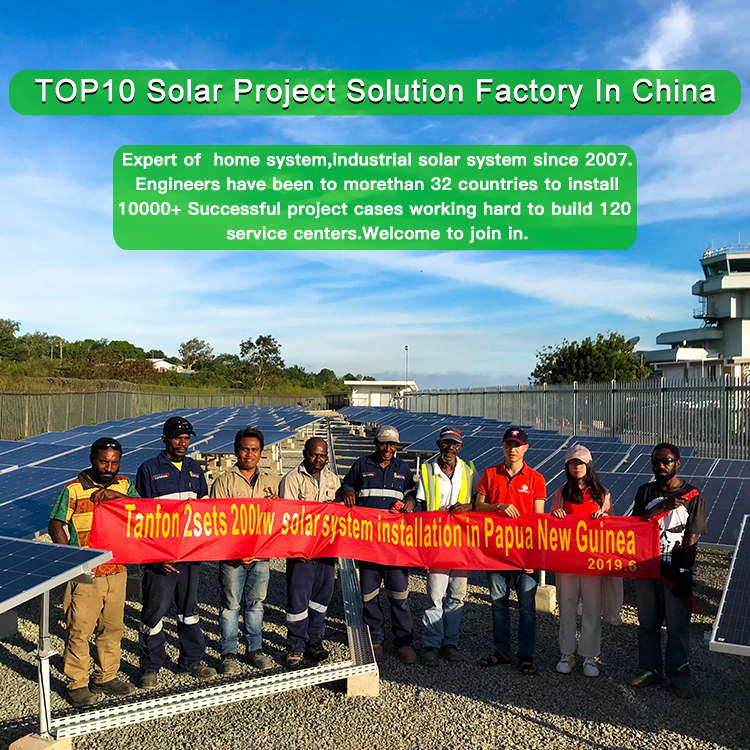

Tanfon is TOP10 solar power system project factory in china

What we do?

Expert of  home system,industrial solar power system since 2007 .Engineer have been to more than 32 countries to install 10000+ Successful project cases

How we do ?

Tanfon solar powered generator--German technology, Chinese price, Global service

1).Our IGBT inverter SCR is used German SEMIKRON technology, with Germany standard and quality.

2).Our Chinese factory is mainly responsible for the supply chain management and production

3).Our Global service in Thailand,Kenya,Senegal,Mozambique,will build 120 service centers all over the world. Give strong after-sales service in Local

After 12 years of deep cultivation, we have successfully helped 28 customers to grow up and cooperate together to develop the local market more comprehensively.

Specializing in installing projects from design, detailing, fabrication to erection, having continue cooperation with engineers, exclusive agents and the foreign business partners, we are now sincerely hoping to join hands with you to create a better future together at the principle of win-win cooperation

Q:what model on grid solar system you have ?

A:from 1kw-100kw,output 380V for normal market ,output 110V/220V is south america market.

Q:what is on grid solar system?

A:working without battery ,sale power to grid ,and work directly to load in daytime ,sale 90% electricity bill in daytime!

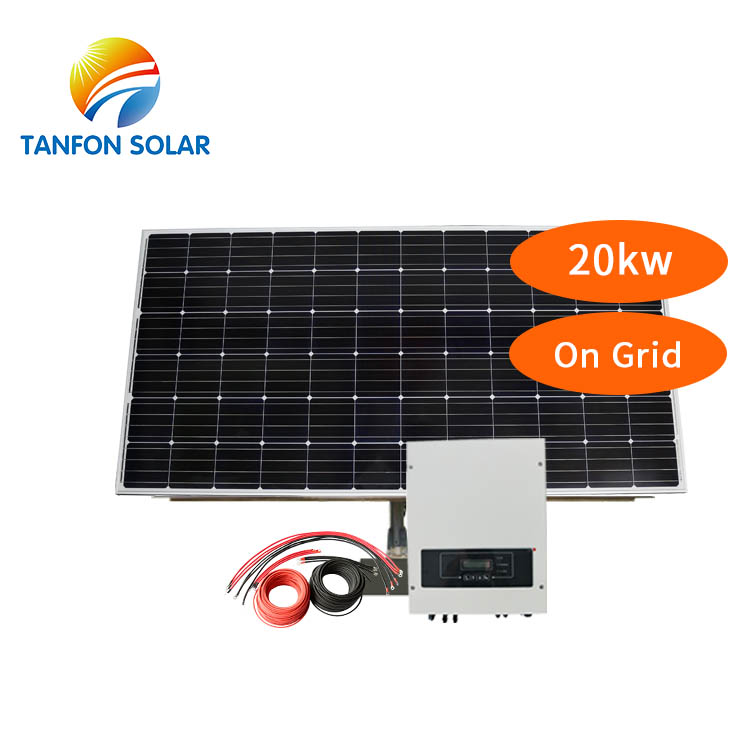

full equipments of 20 kw on grid solar power system



full equipments of 20 kw on grid solar power system

	Type: mono solar panel( poly optional) Max power :280w Vmp:30V  Voc:36V  Imp 9.33A     Size : 1640*992*35mm 25 years life time (CE UL) Glass:3.2mm Tempered Terminal block：IP65 with MC4 connector Efficiency performance :25 years 80 % 20 year 85% 10 years 90% A Grade SUNTECH cells of high efficiency 21% Connection way: 9pcs per string
	Power capacity:HBF20KW MPPT voltage:90V-580V Rate voltage:360V Number of MPP inputs:2 Number of DC inputs:2 Allowed Voltage Range Of Grid：220V or 380-415V Communication interface:RS485 Inverter size:478*344*170mm Include WIFI module
	Slope Rooftop or Flat rooftop including complete fittings wind load:55m/s,snow load:1.5kn/m2 structure:Anodized Aluminum+stainless steel, Angle adjustable
	4mm2 PV cable *100M 10mm2 inverter cable 20M    MC4 International standard, with specification suitable for solar system

How to control on grid solar system(solar panel)  quality?            full equipments of 20 kw on grid solar power system
System	System Essentials	Pictures
Supply System	1. Solar cell: Dark color, black, no color difference 2. Solar Cell shape: corner piece 3. Solar cell efficiency: 21%
Production System	1. Classification of solar cell with different colors, powers and efficiencies using automatic sorting equipment 2. EL test of the solar cell by EL device to ensure that the solar cell is not cracked 3. Components are fully automated production line operations
QC System	1. EL tester tests the solar cell to ensure no cracks 2. The component tester performs EL and data testing before component packaging to ensure data is acceptable and components are not cracked.  3. Component products are monitored with data from a tester to ensure data is correct
Packaging System	1. Can be packed in carton box or wooden cases 2. The solar panel is in an upright packaging mode to reduce the transport breakage rate
Factory Inspection System	QC inspection qualified products, distinguish the identification zone placement, ensure the shipment quantity, model, customer name is correct.
After Sales Service System	Free replacement of new solar panel during the 10-year warranty period if have any quality problem.

Solar panel production video: Classification of solar cell with different colors, powers and efficiencies using automatic sorting equipment

Package:

Solar system application:
