solar power system
5kva Home Solar Power System Off-Grid 5000 Watt Solar Panel System Angola
Product Specification:- Brand Name : TANFON
- Model Number : 5KVA Solar Power System
- DC voltage : 96V
- Output voltage : 110V/220V
- Advantage : German Technology
- Certificate : ISO, ETL, TUV, CE, RoHS
- Payment : T/T, L/C, Paypal, Western Union
You May Like
- The off-grid solar system is used in areas completely disconnected from the grid. It uses solar energy during the day and the electricity stored in the battery at night to achieve 24-hour use of electricity
What's Included:
| Off-Grid 5000 Watt Solar Panel System | |
| 350W Solar Panel | 12 (Pcs) |
| Hybrid Inverter | 5KW IGBT inverter |
| H4T PV Combiner | 1 (Set) |
| Lithium Battery | 96V 170AH |
| Quantity of Battery | 1 (Pcs) |
| DC Cable | 100 (m) |
| Mounting System | Customized |
| Battery Rack | Customized |
| Battery cable+PV cable | 1 (Set) |
| Monitoring System | 1 (Set) |
| PV Tools | Full set |
| Packaging Information | volume:2.83CBM Weight:763KG |
| Installation area | solar panel:12m²-inverter+battery:3-5m² |
|
|
|

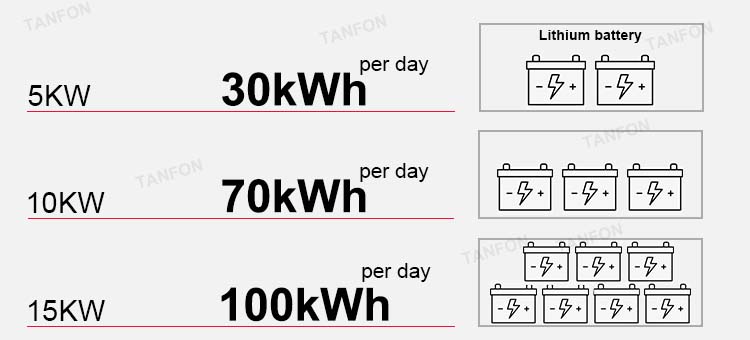

Note: The electricity produced every day in the picture is the maximum value reached after 6 hours of sunlight.
| Product details | |
|
|
FS350W mono solar panel(poly optional) Vmp:38.39V Voc:47.13V Imp 9.25A Size : 1956*992*40mm 25 years life time (CE TUV) Coated steel Glass:3.2mm Tem pered Terminal block：IP65 with MC4 connector Efficiency performance :25 years 80 % 20 year 85% 10 years 90% |
|
|
Model:H4T-96v Multiple PV strings inputs and controller, Prevent hot spot effect Reliable thunderstorm& surge protection Product Size:400*425*145mm |
|
|

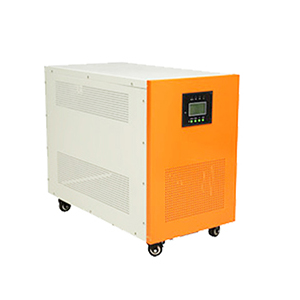

controller+inverter WiFi signal receiving module PV controller model:96V/60A Charging efficiency; 90%-95%, charging mode, intelligent control., various protection functions; IGBT Inverter:5KW96VDC 110V/120V/220V/230V/240VAC output, City power and generator charger build in Overload, overcharge, over-discharge protection Fuji brand IGBT material |
|
|
Solar battery 1)Gel battery,2 years warranty. ship NEW for service. 2)Lithium battery,3 years warranty. ship NEW for service. |
|
|
Monitoring System Data Logging Stick allows you to receive information from solar power system, in order to keep you informed about the situation of your PV system, and the atmosphere conditions, everywhere and every time, thanks to our web server, accessible via Wi-Fi,Lan or GPRS. for PC, IOS & Andriod |
|
|
Slope Rooftop or Flat rooftop including complete fittings wind load:55m/s,snow load:1.5kn/m2 structure:Anodized Aluminum+stainless steel, Angle adjustable |
|
|
Cable 1)4pcs 16mm2*2M battery cable. 2)4mm2 PV cable 100M,50M black 50M red. 3)1set PV terminals and MC4 4)1P 63A Battery switch and box |
|
|
Installation Tools hammer*pliers*screwdriver Disassembly tool gloves Screwdriver 5mm Disassembly tool |
|
|
Most Complete Configuration Configuration is most complete on the market, which includes all necessary components. After the installation is complete, it can be directly used by household appliances. Super load capacity, with complete short circuit protection, overvoltage protection, overload protection, backfill protection, insulation resistance protect |
|
|
|
Contact our sales representative and provide a monthly electricity bill or total load. Our technicians can calculate the solar power system that suits you.
| Transport Packaging | |
|
|
|
|
Can be packed in carton box or wooden cases, The solar panel is in an upright packaging mode to reduce the transport breakage rate, Free replacement of new solar panel during the 10-year warranty period if have any quality problem. |
| How to install Off-Grid 5000 Watt Solar Panel System? |
|
|
| When you become a user of tanfon products, you can get our technical support, Tanfon Team also have Video install support+install drawing +Step by step installation instructions. |
| Overseas Projects: |
|
|
|
Our products have been sold to more than 120 countries, (solar home project,solar school project ,solar hospital project,solar farm project ,solar hotel project,solar air port project ,solar millitary project ,Solar energy water treatment equipment project，solar goverment project etc) we have a professional installation team, which has been to 32 countries and regions ( Egypt, Bangladesh, Chad, Nigeria,Thailand,Ghana, Doha, East Timor state, Pakistan, kenya ,indonesia ,Dubai,Mozambique etc.) for installation service. We also win many good feedbacks from the customers. |
| Customer service: |
|
|
|
After 12 years of deep cultivation, we have successfully helped 28 customers to grow up and cooperate together to develop the local market more comprehensively. Specializing in installing projects from design, detailing, fabrication to erection, having continue cooperation with engineers, exclusive agents and the foreign business partners, we are now sincerely hoping to join hands with you to create a better future together at the principle of win-win cooperation (send inquiry to know more) |
