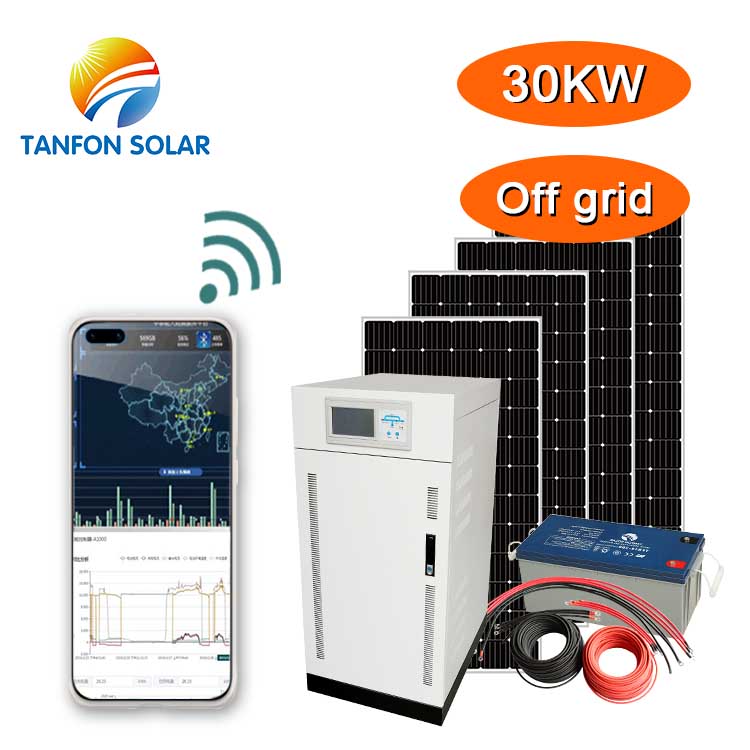

30kw 30kva Off Grid Solar Power System With Battery
Product Specification:- Brand Name : TANFON
- Model Number : 30KW Solar Power System
- DC voltage : 360V
- Output voltage : 220V/380V
- Advantage : German Technology
- Certificate : ISO, ETL, TUV, CE, RoHS
- Payment : T/T, L/C, Paypal, Western Union
You May Like
| 30kw Off Grid Solar System With Battery | ||
 |
FS360w solar panel | 60pcs |
| H8T PV combiner | 1pc | |
| 240V/100A solar controller | 1pc | |
| TF30KW solar inverter | 1pc | |
| 96V/240AH Lithium battery | 1pcs | |
| solar panel rack | 1set | |
| Battery cable+PV cable | 1set | |
| Packaging Information | Total volume;4.12CBM Total weight:1138KG | |
| Installation area | solar panel:100m² inverter+battery:6-10m² | |
 |
FS350W mono solar panel(poly optional) Vmp:38.39V Voc:47.13V Imp 9.25A Size : 1956*992*40mm 25 years life time (CE TUV) Coated steel Glass:3.2mm Tem pered Terminal block：IP65 with MC4 connector Efficiency performance :25 years 80 % 20 year 85% 10 years 90% |
 |
PV combiner Model:H6T-192v Multiple PV strings inputs and controller, Prevent hot spot effect Reliable thunderstorm& surge protection Product Size:400*425*145mm |
|
|
PV controller model:192V/120A 23kw Charging efficiency; 90%-95%, charging mode, intelligent control., various protection functions; |
 |
Pure sine wave inverter;30kw DC input:192v WiFi signal receiving module AC charger 15-20A 100% Germany brand IGBT materials Double protection, easy after sales service O/P:110V,220VAC 50HZ or 60HZ Product Size:590*470*730mm |
|
|
Solar battery 1)Gel battery,2 years warranty. ship NEW for service. 2)Lithium battery,3 years warranty. ship NEW for service. |
|
|
Slope Rooftop or Flat rooftop including complete fittings wind load:55m/s,snow load:1.5kn/m2 structure:Anodized Aluminum+stainless steel, Angle adjustable |
 |
1)4pcs 16mm2*2M battery cable. 2)4mm2 PV cable 200M,100M black 100M red. 3)1set PV terminals and MC4 4)2P 100A Battery switch and box |
Remark:
Compared with the traditional solar battery,it saves space and doubles the lifespan.Can be well used in home solar system,commerical solar systems, and industrial solar systems.
More Power Types;
10kva Off Grid Solar Power System For Home
15KW Solar Power System Kit With Battery
20kva Solar Kit System Energy Power
25kw Off Grid Solar Energy Storage Systems Kit With Battery
| How to control Solar System Kit (solar panel) quality? | ||
| System | 30kw Off Grid Solar Power System | Pictures |
|
Supply System |
1. Solar cell: Dark color, black, no color difference 2. Solar Cell shape: corner piece 3. Solar cell efficiency: 21% |
 |
|
Production System |
1. Classification of solar cell with different colors, powers and efficiencies using automatic sorting equipment 2. EL test of the solar cell by EL device to ensure that the solar cell is not cracked 3. Components are fully automated production line operations |
 |
| QC System |
1. EL tester tests the solar cell to ensure no cracks 2. The component tester performs EL and data testing before component packaging to ensure data is acceptable and components are not cracked. 3. Component products are monitored with data from a tester to ensure data is correct |
|
|
Packaging System |
1. Can be packed in carton box or wooden cases 2. The solar panel is in an upright packaging mode to reduce the transport breakage rate |
 |
| Factory Inspection System | QC inspection qualified products, distinguish the identification zone placement, ensure the shipment quantity, model, customer name is correct. | |
| After Sales Service System | Free replacement of new solar panel during the 10-year warranty period if have any quality problem. | |
Solar panel production video: Classification of solar cell with different colors, powers and efficiencies using automatic sorting equipment
