300kw 300kva Off Grid Solar Power System With Battery

Product Specification:
  • Brand Name : TANFON SOLAR
  • Model Number : solar system 300kw
  • Phase number : Single phase, split phase, three phase
  • Output voltage : 110V 120V 220V 230V 240V 380V 415V 440V
  • Advantage : German Technology
Inquiry Now
Product Details
One-stop service
Customer Feedback

TANFON Solar Manufacturer since 2007, Professional technical team, German technical solar products, Home solar system, Industrial & Commercial Solar System, 50000+ successful cases, Have a lot of experience in solar energy solutions, Serving 160 countries, 100% satisfaction.

What's Included:



Product details



Maximum 600W solar panel optional

Shingled solar panel, USA Technology, higher efficiency, longer life

Vmp:38.39V  Voc:47.13V  Imp 9.75A

Size : 1956*992*40mm

25 years life time  (CE TUV)

Coated steel Glass:3.2mm Tem pered

Terminal block:IP65 with MC4 connector

Efficiency performance :25 years 80 % 20 year 85% 10 years 90%

Connect:each 13pcs in series, 4strings in series



PV combiner

Model:H10T-360v  Multiple PV strings inputs

Simplify wiring between PV array

and controller, protections  to controller ,

Wide range of DC input voltage

Reliable thunderstorm& surge protection



MPPT controller model: 360V/150A

Charging efficiency; 90%-95%,

charging mode, intelligent control.,

various protection functions;

Can read daily,monthly and total power generation



Solar three phase Inverter power:TF300kw

IGBT Module Design

WiFi signal receiving module

Charging efficiency; 90%-95%,with AC charger built-in, Protection against short-circuit,

AC Output: 110V 120V 220V 230V 240V 380V 415V 440V 50/60HZ

Phase number: Single phase, split phase, three phase options





Solar battery

1.Free maintenance, service life 6-8 years
2.DOD 70% cycles 1500 times
3.The latest through-wall welding technology,more suitable for motor loads.

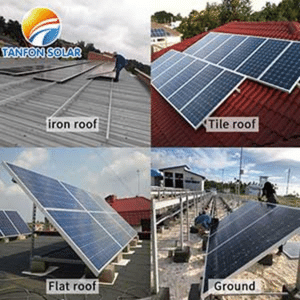

Slope Rooftop or Flat rooftop

including complete fittings

wind load:55m/s,snow load:1.5kn/m2

structure:Anodized Aluminum+stainless steel, Angle adjustable

cable

Installation Tools

Most Complete Configuration

Configuration is most complete on the market, which includes all necessary components. After the installation is complete, it can be directly used by household appliances.

Super load capacity, with complete short circuit protection, overvoltage protection, overload protection, backfill protection, insulation resistance protect





Learn more feedback cases



For the products, Each set solar power system has power on&off test 100 times per hour.Each step of production is under strict quality control. Our products are qualified with CE, ROHS, ISO, SGS certification

For our project case: Our products have been sold to more than 160 countries, (solar home project,solar school project ,solar hospital project,solar farm project ,solar hotel project,solar air port project ,solar millitary project ,Solar energy water treatment equipment project,solar goverment project etc)

For our Global service in Thailand, Kenya, Senegal, Mozambique, will build 120 service centers all over the world. Provide Strong After-Sales Service To Countries in Africa, Latin America and Asia.



TANFON Solar factory



Learn more about TANFON Solar Manufacturer



Transport Packaging

Can be packed in carton box or wooden cases, The solar panel is in an upright packaging mode to reduce the transport breakage rate, Free replacement of new solar panel during the 10-year warranty period if have any quality problem.





 How to control solar power system(solar panel)  quality?
System System Essentials Pictures

Supply

System

1. Solar cell: Dark color, black, no color difference

2. Solar Cell shape: corner piece

3. Solar cell efficiency: 21%

300kva Off Grid Solar System With Battery

Production

System

1. Classification of solar cell with different colors, powers and efficiencies using automatic sorting equipment

2. EL test of the solar cell by EL device to ensure that the solar cell is not cracked

3. Components are fully automated production line operations

300kva Off Grid Solar System With Battery
QC System

1. EL tester tests the solar cell to ensure no cracks

2. The component tester performs EL and data testing before component packaging to ensure data is acceptable and components are not cracked.

3. Component products are monitored with data from a tester to ensure data is correct

300kva Off Grid Solar System With Battery

300kva Off Grid Solar System With Battery

Packaging

System

1. Can be packed in carton box or wooden cases

2. The solar panel is in an upright packaging mode to reduce the transport breakage rate

300kva Off Grid Solar System With Battery
Factory Inspection System QC inspection qualified products, distinguish the identification zone placement, ensure the shipment quantity, model, customer name is correct.
After Sales Service System Free replacement of new solar panel during the 10-year warranty period if have any quality problem.

Solar panel production video: Classification of solar cell with different colors, powers and efficiencies using automatic sorting equipment

              How to control solar power system(Solar Inverter) quality?
System System Essentials Pictures

Supply

System

1. Since the establishment of our inverter factory, we have been purchasing transformers and capacitors from the same supplier.

2. MOS tube adopts imported IR brand

3. SCR adopts imported from Germany

4. IGBT adopts Japanese Mitsubishi brand

300kw Off Grid Solar System With Battery

300kw Off Grid Solar System With Battery

Production

System

Wall-mounted inverter board production uses automated machine plug-ins. Improve efficiency, reduce loss, and enhance stability 300kw Off Grid Solar System With Battery
QC System ICT test, pinhole alignment PCB board, check all lines, reduce the failure rate. 300kw Off Grid Solar System With Battery

Packaging

System

Power lower than 1KW inverter carton packaging, containing pearl cotton; power higher than 2KW inverter plywood wooden box packaging, containing pearl cotton. One piece one packaging. 300kw Off Grid Solar System With Battery
Factory Inspection System Our inverter has passed 100 times of ultimate power-off test. According to statistics, 99% of the tested inverter can work very stable. 300kw Off Grid Solar System With Battery
After Sales Service System All inverters are free to send new spare boards within the warranty. For more services, please click the link to view.

Solar inverter board production: use automated machine plug-ins. Improve efficiency, reduce loss, and enhance stability.

                        How to control solar power system (Gel Battery) quality?
System System Essentials Pictures

Supply

System



1. Battery case, ABS material conforming to UL94HB and UL94V-0 standards, no color difference, no crack.

2. The unique lead-calcium grid improves the hydrogen evolution potential, reduces gas evolution, reduces corrosion rate, and extends battery life.

3. The use of copper terminals, excellent conductivity and high wear resistance, enhances high current discharge performance;

4. High quality AGM partition for partition



300kw Off Grid Solar System With Battery

Production

System



1. Battery plate production workshop, independent production of positive and negative plates, effectively ensuring the quality of the plates

2. Semi-automatic cladding machine): Semi-automatic double-layer cladding technology, double-layer separator can better prevent short circuit of the pole plate. The semi-automatic double-layer board process ensures that the packaged groups are neat, beautiful and clean.

3. Automatic slotting machine: higher efficiency, saving the process involved in manual slotting, avoiding the human contact group, maximizing the protection of the pole group, making the battery have very good self-discharge performance, battery consistency, total Voltage consistency.



300kw Off Grid Solar System With Battery
QC System



1. DC spectrometer: high precision detection of lead purity to ensure purity above 99.994%

2. High current detector: ensure that each battery is under high current, whether charge and discharge normal

3. Large battery tester: Under high current, whether the bus bar of the battery has a problem of melting and short circuit

4. Internal resistance meter: Make sure that the internal resistance and voltage of each battery are normal, and the consistency of the battery.



300kw Off Grid Solar System With Battery

Packaging

System

Carton packaging, use the inspection-free pallet to hold the shipment 300kw Off Grid Solar System With Battery
Factory Inspection System

QC inspection qualified products, distinguish the identification zone placement, ensure the shipment quantity, model, customer name is correct

After Sales Service System

Free replacement of new batteries during the 2-year warranty period if have any quality problem



Tanfon solar certification:

Solar system application:

off grid solar system

off grid solar system

off grid solar system
