solar power system

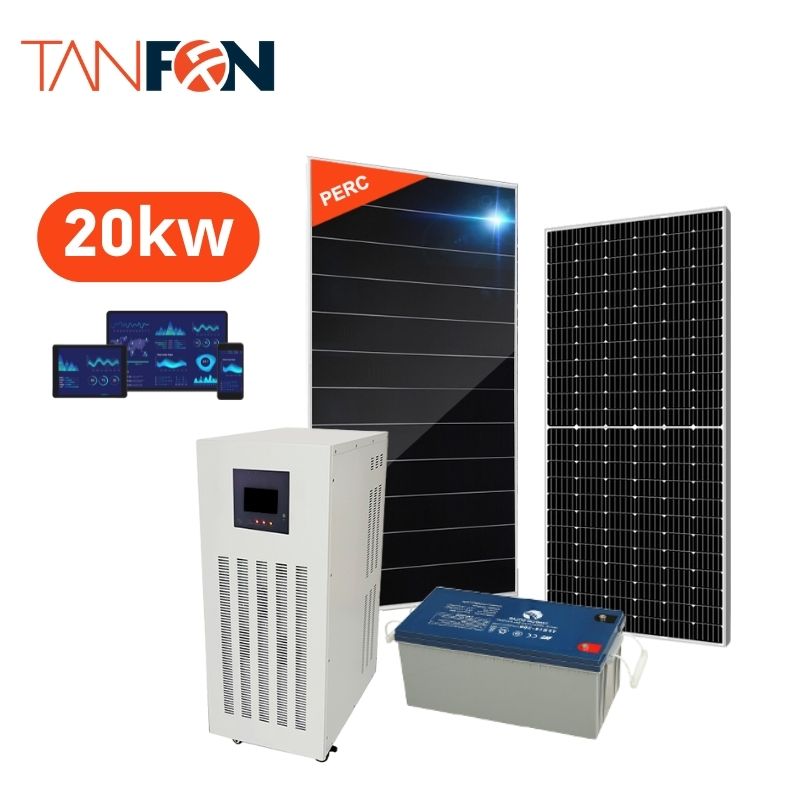

20KW 20000 Watt Solar Energy System Solution Supplier

Product Specification:
  • Brand Name : TANFON
  • Model Number : 20KW Solar Power System
  • DC voltage : 192V
  • Output voltage : 110V/220V
  • Advantage : German Technology
  • Certificate : ISO, ETL, TUV, CE, RoHS
  • Payment : T/T, L/C, Paypal, Western Union
Inquiry Now
Product Details
One-stop service

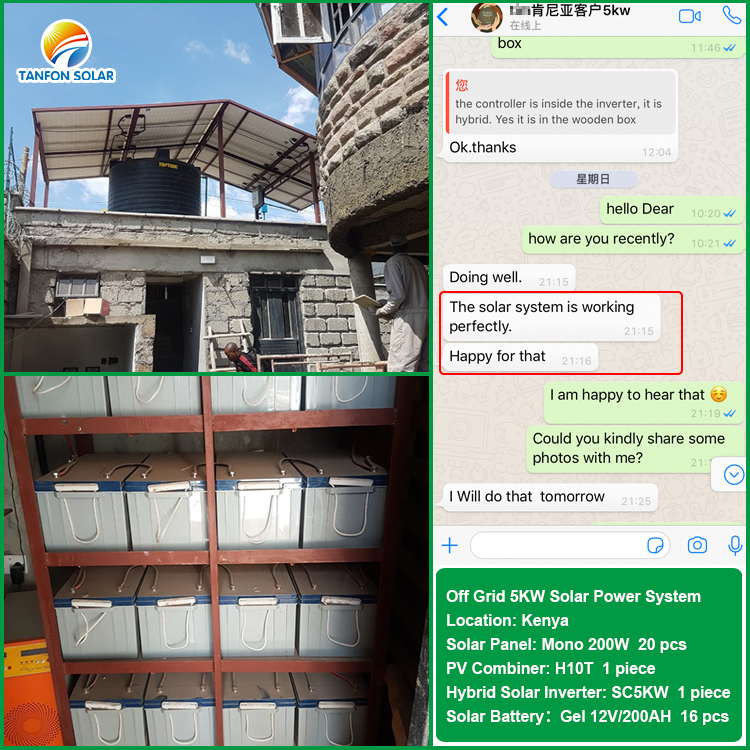

Customer Feedback

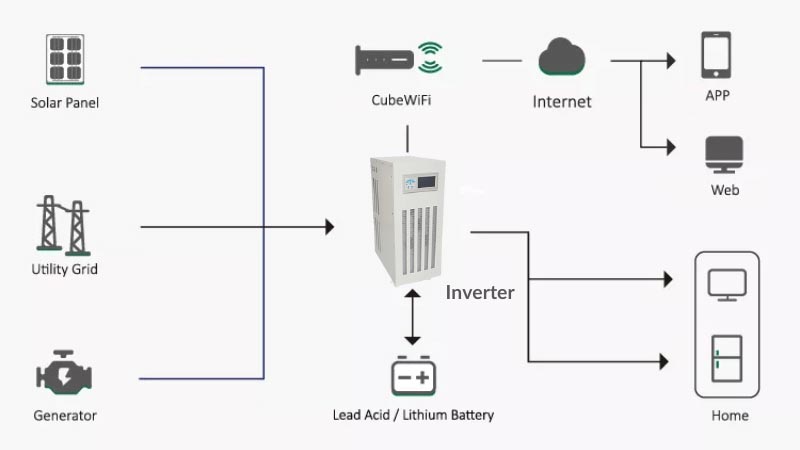

  • Working theory
  • There are 2 types of off grid solar systems.
  • Mode 1: When there is no national grid, the off grid system will convert the DC power into AC for the loads operation independently.
  • Mode 2: When there is a national grid, the off grid system will not only supply the loads power from the solar energy, but also use the national grid or diesel generator as a back up power.
  • Application Range
  • 1.There is a national grid supply
  • 2. The local government has the subsidies for the grid-tied solar system(optional)

What's Included:

20KW 20000 Watt Solar Power System
Hybrid Inverter 20KW
350W Solar Panel 40 (Pcs)
H6T PV combiner 1 (Set)
Lithium battery 192V240AH
Quantity of Battery 1 (Pcs)
DC Cable 400 (m)
Mounting System Customized
Battery Rack Customized
Battery Cable 220 (Pcs)
MC4 30 (Pair)
PV Tools Loading and unloading tools
Packaging Information Volume;6.8CBM Weight:2663KG
Installation area Solar panel:80m²-inverter+battery:6-10m²

Note: The electricity produced every day in the picture is the maximum value reached after 6 hours of sunlight.

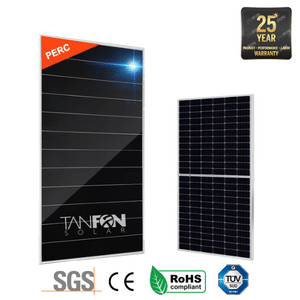

FS350W mono solar panel(poly optional)

Vmp: 38.39V  Voc: 47.13V

Imp 9.25A

Size : 1956*992*40mm

25 years life time  (CE TUV)

Coated steel Glass:3.2mm Tem pered

Terminal block: IP65 with MC4 connector

Efficiency performance: 25 years 80 % 20 year 85% 10 years 90%

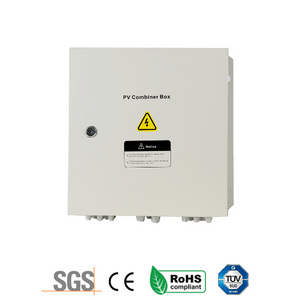

PV combiner

Model:H6T-192v  Multiple PV strings inputs

and controller, Prevent hot spot effect

Reliable thunderstorm& surge protection

Product Size:400*425*145mm

PV  controller model:192V/120A

Charging efficiency; 90%-95%,

charging mode, intelligent control.,

various protection functions;

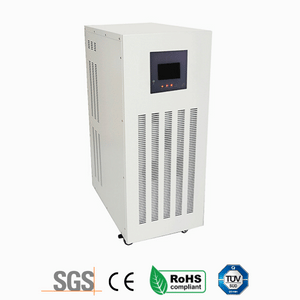

Pure sine wave inverter;20kw DC input:192v

WiFi signal receiving module

AC charger 15-20A

100% Germany brand IGBT materials

Double protection, easy after sales service

O/P:110V,220VAC 50HZ or 60HZ

Product Size:590*470*730mm

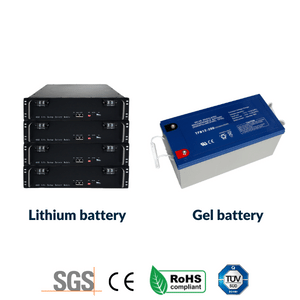

Solar battery

Gel battery, 2 years warranty.

ship NEW for service.

Lithium battery, 3 years warranty.

ship NEW for service.

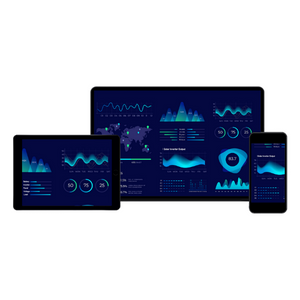

Monitoring System
Data Logging Stick allows you to receive information from solar power system, in order to keep you informed about the situation of
your PV system, and the atmosphere conditions, everywhere and every time, thanks to our web server, accessible via Wi-Fi,Lan or GPRS. for PC, IOS & Andriod

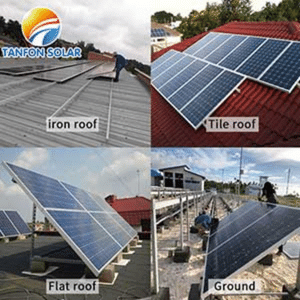

Slope Rooftop or Flat rooftop

including complete fittings

wind load:55m/s,snow load:1.5kn/m2

structure:Anodized Aluminum+stainless steel, Angle adjustable

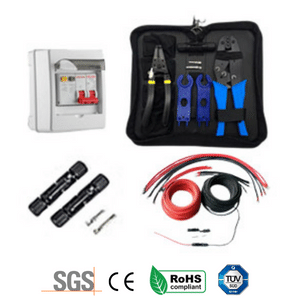

Accessories

4pcs 16mm2*2M battery cable.

4mm2 PV cable 100M,50M black 50M red.

1set PV terminals and MC4

1P 63A Battery switch and box

Installation Tools

M8 hex wrench

Disassembly tool gloves

Screwdriver 5mm

Disassembly tool

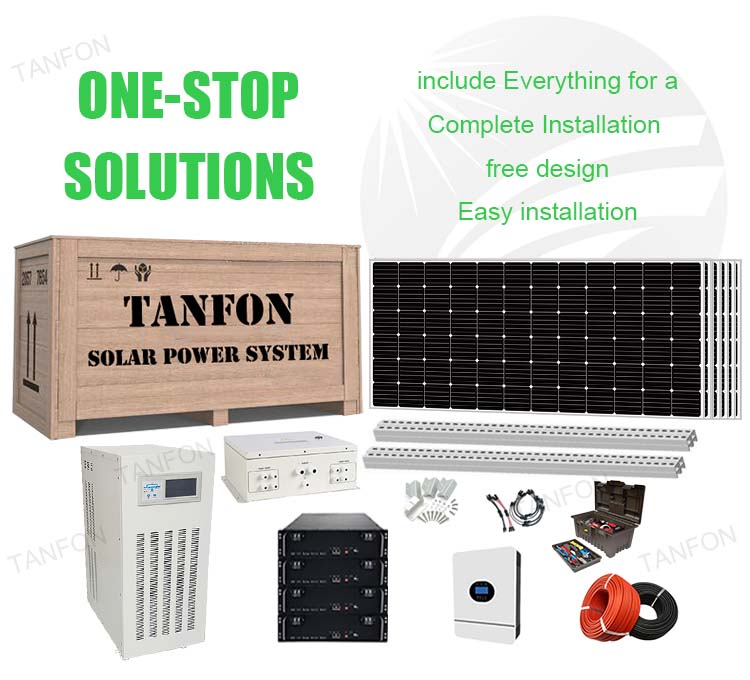

Most Complete Configuration

Configuration is most complete on the market, which includes all necessary components. After the installation is complete, it can be directly used by household appliances.

Super load capacity, with complete short circuit protection, overvoltage protection, overload protection, backfill protection, insulation resistance protect

Contact our sales representative and provide a monthly electricity bill or total load. Our technicians can calculate the solar power system that suits you.

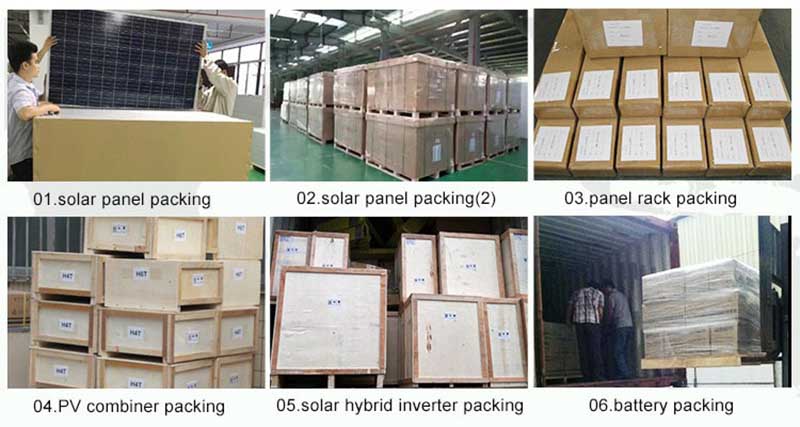

Transport Packaging

Can be packed in carton box or wooden cases, The solar panel is in an upright packaging mode to reduce the transport breakage rate, Free replacement of new solar panel during the 10-year warranty period if have any quality problem.



How to install 20kw solar system?

When you become a user of tanfon products, you can get our technical support, Tanfon Team also have Video install support+install drawing +Step by step installation instructions.

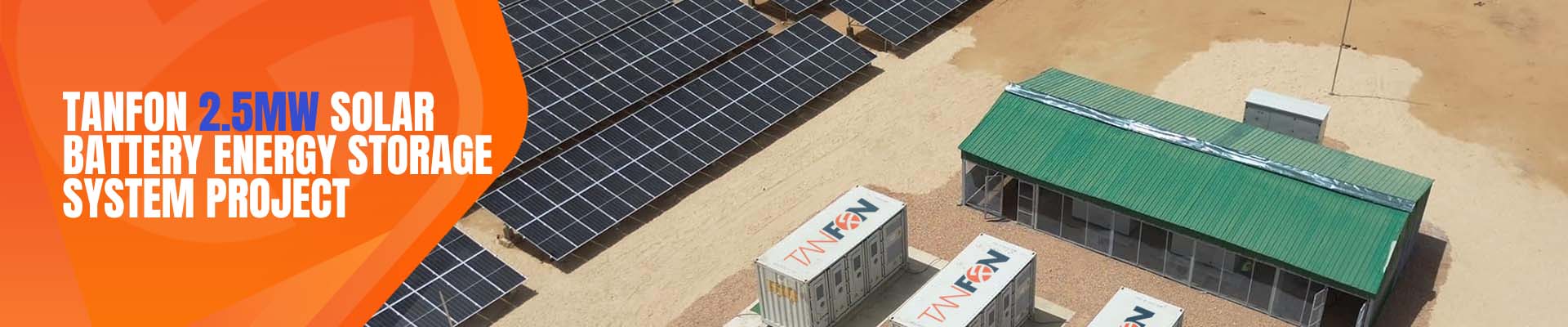

Overseas Projects:

Our products have been sold to more than 120 countries, (solar home project,solar school project ,solar hospital project,solar farm project ,solar hotel project,solar air port project ,solar millitary project ,Solar energy water treatment equipment project,solar goverment project etc)

we have a professional installation team, which has been to 32 countries and regions ( Egypt, Bangladesh, Chad, Nigeria,Thailand,Ghana, Doha, East Timor state, Pakistan, kenya ,indonesia ,Dubai,Mozambique etc.) for installation service. We also win many good feedbacks from the customers.

More tanfon cases



Customer service

After 12 years of deep cultivation, we have successfully helped 28 customers to grow up and cooperate together to develop the local market more comprehensively.

Specializing in installing projects from design, detailing, fabrication to erection, having continue cooperation with engineers, exclusive agents and the foreign business partners, we are now sincerely hoping to join hands with you to create a better future together at the principle of win-win cooperation (send inquiry to know more)



Overseas exhibitions:



Tanfon Solar APP Super Advantage:
1)One Phone remote control ALL solar system
2)Troubleshoot and reduce maintenance costs
3)Develop your brand APP to competitiveness



TANFON mission:

Make the world away of the expensive electricity.

TANFON advantage:

German technology, Chinese prices, global service.



Q1. Are you factory?

A1. Yes, our factory and sales department are

located in Foshan and we would be pleased to welcome

you in our factory at any time when you are in Foshan.



Q2. How long is solar power products warranty?

A2. YES, products are at least 8 years warranty.



Q3. What is the shipping way of solar power products?

A3. Ship by sea.



Q4. What is the payment method?

A4. We normally require a T/T advance payment.

30% deposit and 70% before shipping.

Western Union / MoneyGram /Alibaba can also be used.



Q6. Can we add our logo on products?

A6. YES.you can add your logo on products.



Q7. Can we customize product?

A7. YES. OEM & ODM.



Q8. What is TANFON solar power products

after sales service

A9. During the warranty, ship free PCB by DHL or FEDEX.



Q9. What is your trade Asusurance

A10:100% product quality protection

        100% product on time shipment protection

        100% payment protection for your covered amount

        If you have more question, welcome to contact us freely,

       Choose TANFON, Choose Satisfaction!
