20KW 20000W Solar Energy System Ground Mount Solution Supplier

Product Specification:
  • Brand Name : TANFON
  • Model Number : 20KW Solar Power System
  • DC voltage : 192V
  • Output voltage : 110V/220V
  • Advantage : German Technology
  • Certificate : ISO, ETL, TUV, CE, RoHS
  • Payment : T/T, L/C, Paypal, Western Union
Inquiry Now
Product Details
One-stop service
Customer Feedback

  • The off-grid solar system is used in areas completely disconnected from the grid. It uses solar energy during the day and the electricity stored in the battery at night to achieve 24-hour use of electricity

What's Included:

20KW 20000 Watt Solar Power System
Hybrid Inverter 20KW
350W Solar Panel 40 (Pcs)
H6T PV combiner 1 (Set)
Lithium battery 192V240AH
Quantity of Battery 1 (Pcs)
DC Cable 400 (m)
Mounting System Customized
Battery Rack Customized
Battery Cable 220 (Pcs)
MC4 30 (Pair)
PV Tools Disassembly Tool
Packaging Information volume;6.8CBM Weight:2663KG
Installation area solar panel:80m²-inverter+battery:6-10m²



Product details

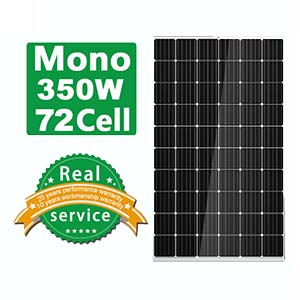

FS350W mono solar panel(poly optional)

Vmp: 38.39V  Voc: 47.13V

Imp 9.25A

Size : 1956*992*40mm

25 years life time  (CE TUV)

Coated steel Glass:3.2mm Tem pered

Terminal block: IP65 with MC4 connector

Efficiency performance: 25 years 80 % 20 year 85% 10 years 90%

PV combiner

Model:H6T-192v  Multiple PV strings inputs

and controller, Prevent hot spot effect

Reliable thunderstorm& surge protection

Product Size:400*425*145mm

PV  controller model:192V/120A

Charging efficiency; 90%-95%,

charging mode, intelligent control.,

various protection functions;

Pure sine wave inverter;20kw DC input:192v

WiFi signal receiving module

AC charger 15-20A

100% Germany brand IGBT materials

Double protection, easy after sales service

O/P:110V,220VAC 50HZ or 60HZ

Product Size:590*470*730mm

Solar battery

Gel battery, 2 years warranty.

ship NEW for service.

Lithium battery, 3 years warranty.

ship NEW for service.

Monitoring System
Data Logging Stick allows you to receive information from solar power system, in order to keep you informed about the situation of
your PV system, and the atmosphere conditions, everywhere and every time, thanks to our web server, accessible via Wi-Fi,Lan or GPRS. for PC, IOS & Andriod

Slope Rooftop or Flat rooftop

including complete fittings

wind load:55m/s,snow load:1.5kn/m2

structure:Anodized Aluminum+stainless steel, Angle adjustable

Accessories

4pcs 16mm2*2M battery cable.

4mm2 PV cable 100M,50M black 50M red.

1set PV terminals and MC4

1P 63A Battery switch and box

Installation Tools

M8 hex wrench

Disassembly tool gloves

Screwdriver 5mm

Disassembly tool

Most Complete Configuration

Configuration is most complete on the market, which includes all necessary components. After the installation is complete, it can be directly used by household appliances.

Super load capacity, with complete short circuit protection, overvoltage protection, overload protection, backfill protection, insulation resistance protect



Transport Packaging

Can be packed in carton box or wooden cases, The solar panel is in an upright packaging mode to reduce the transport breakage rate

Free replacement of new solar panel during the 10-year warranty period if have any quality problem.

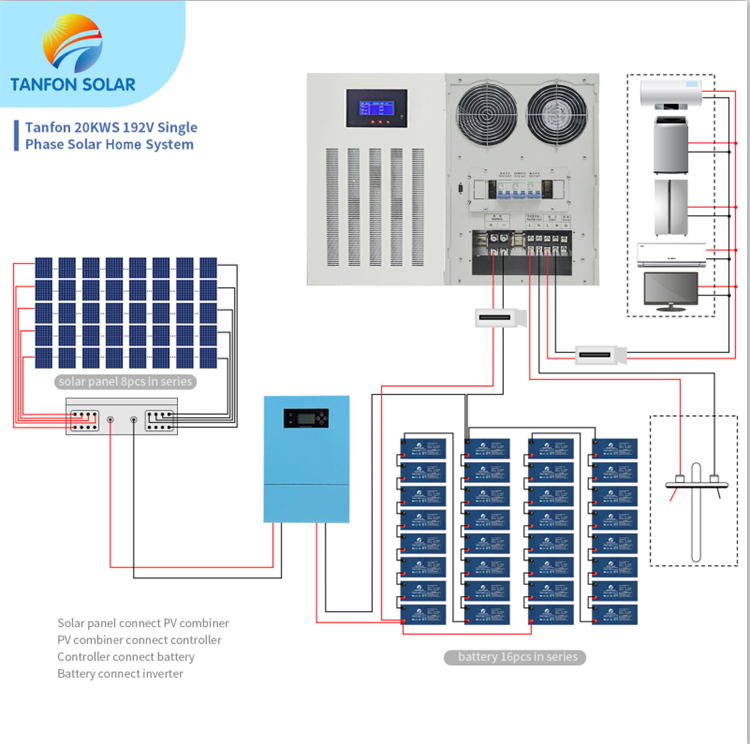

How to install 20kw solar system?

When you become a user of tanfon products, you can get our technical support, Tanfon Team also have Video install support+install drawing +Step by step installation instructions.



Overseas Projects:

Our products have been sold to more than 120 countries, (solar home project,solar school project ,solar hospital project,solar farm project ,solar hotel project,solar air port project ,solar millitary project ,Solar energy water treatment equipment project,solar goverment project etc)

we have a professional installation team, which has been to 32 countries and regions ( Egypt, Bangladesh, Chad, Nigeria,Thailand,Ghana, Doha, East Timor state, Pakistan, kenya ,indonesia ,Dubai,Mozambique etc.) for installation service. We also win many good feedbacks from the customers.

More tanfon cases



Customer service

After 12 years of deep cultivation, we have successfully helped 28 customers to grow up and cooperate together to develop the local market more comprehensively.

Specializing in installing projects from design, detailing, fabrication to erection, having continue cooperation with engineers, exclusive agents and the foreign business partners, we are now sincerely hoping to join hands with you to create a better future together at the principle of win-win cooperation (send inquiry to know more)



Overseas exhibitions





solar electricity PV system

solar home system
