15kw 100kw Solar Panels System Complete 1MW Solar Energy System for Commercial

Product Specification:
  • Brand Name : TANFON SOLAR
  • Model Number : solar system 150kw
  • DC voltage : 360V
  • Output voltage : 220V/380V
  • Advantage : German Technology
Inquiry Now
Product Details
One-stop service
Customer Feedback

Solar energy system

Tanfon Supply: Free site survey, design, production, installation, maintenance with our sophiscaticated one-stop service.

three phase solar system from 5kw-300kw

For the products, Each set solar power system has power on&off test 100 times per hour.Each step of production is under strict quality control. Our products are qualified with CE, ROHS, ISO, SGS certification

Solar energy system

For our project case: Our products have been sold to more than 120 countries, (solar home project,solar school project ,solar hospital project,solar farm project ,solar hotel project,solar air port project ,solar millitary project ,Solar energy water treatment equipment project,solar goverment project etc)

we have a professional installation team, which has been to 32 countries and regions ( Egypt, Bangladesh, Chad, Nigeria,Thailand,Ghana, Doha, East Timor state, Pakistan, kenya ,indonesia ,Dubai,Mozambique etc.) for installation service. We also win many good feedbacks from the customers.

For our Global service in Thailand,Kenya,Senegal,Mozambique,will build 120 service centers all over the world. Give strong after-sales service in Local

Solar energy system



 100kw PV photovoltaic system with installation support

High-end solar storage system

Solar energy system

FS380W mono solar panel(poly optional)

Vmp:38.39V  Voc:47.13V  Imp 9.75A

Size : 1956*992*40mm

25 years life time  (CE TUV)

Coated steel Glass:3.2mm Tem pered

Terminal block:IP65 with MC4 connector

Efficiency performance :25 years 80 % 20 year 85% 10 years 90%

Connect:each 13pcs in series, 4strings in series

Solar energy system

PV combiner

Model:H10T-360v

Simplify wiring between PV array

and controller, protections  to controller ,

Wide range of DC input voltage

Reliable thunderstorm& surge protection

Solar energy system

MPPT controller model: 360V/150A

Charging efficiency; 90%-95%,

charging mode, intelligent control.,

various protection functions;

Can read daily,monthly and total power generation

Solar energy system

Power Inverter;150kw DC input:360v

Output :380v 50Hz (3phase )

phse )  Bypass function with AC charger;

Protection against short-circuit, over load,

high-voltage and low-voltage protection

solar energy system



Capacity:2V/1200AH

full sealed Solar power gel battery,

Service life:8-10 years ,

Size:479*175*338mm

Connect way: 180pcs connect in series

Solar energy system

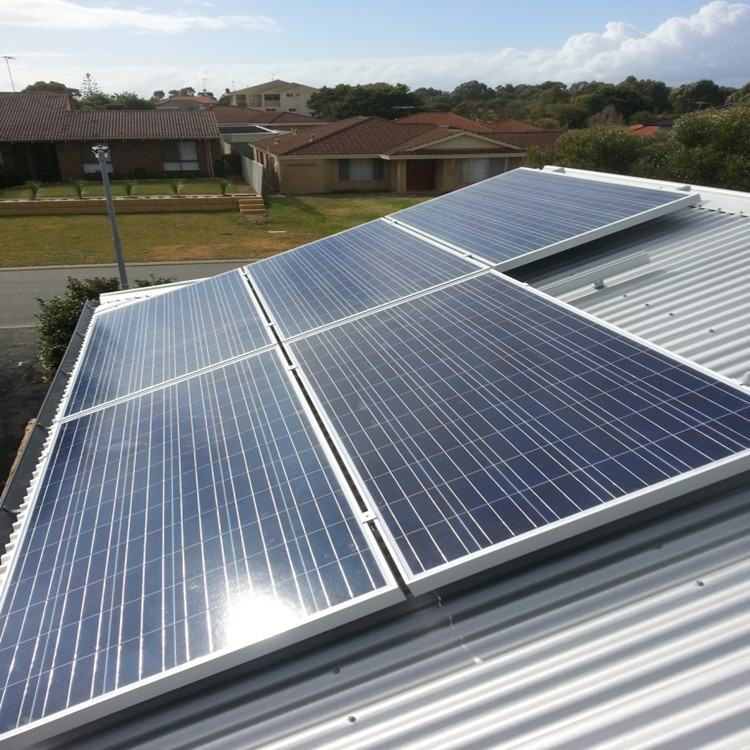

Slope Rooftop or Flat rooftop

including complete fittings

wind load:55m/s,snow load:1.5kn/m2

structure:Anodized Aluminum+stainless steel, Angle adjustable

Solar energy system

1)Copper row 1set for connection 180 batteries

2)4mm2 PV cable 800M,25mm2 cable 100M

3)terminals and MC4 and 2P200A switch Box





                  How to control solar power system(solar panel)  quality?
System System Essentials Pictures

Supply

System

1. Solar cell: Dark color, black, no color difference

2. Solar Cell shape: corner piece

3. Solar cell efficiency: 21%

Solar energy system

Production

System

1. Classification of solar cell with different colors, powers and efficiencies using automatic sorting equipment

2. EL test of the solar cell by EL device to ensure that the solar cell is not cracked

3. Components are fully automated production line operations

Solar energy system
QC System

1. EL tester tests the solar cell to ensure no cracks

2. The component tester performs EL and data testing before component packaging to ensure data is acceptable and components are not cracked.

3. Component products are monitored with data from a tester to ensure data is correct

Solar energy system

Solar energy system

Packaging

System

1. Can be packed in carton box or wooden cases

2. The solar panel is in an upright packaging mode to reduce the transport breakage rate

Solar energy system
Factory Inspection System QC inspection qualified products, distinguish the identification zone placement, ensure the shipment quantity, model, customer name is correct.
After Sales Service System Free replacement of new solar panel during the 10-year warranty period if have any quality problem.

Solar panel production video: Classification of solar cell with different colors, powers and efficiencies using automatic sorting equipment

              How to control solar power system(Solar Inverter) quality?
System System Essentials Pictures

Supply

System

1. Since the establishment of our inverter factory, we have been purchasing transformers and capacitors from the same supplier.

2. MOS tube adopts imported IR brand

3. SCR adopts imported from Germany

4. IGBT adopts Japanese Mitsubishi brand

Solar energy system

Solar energy system

Production

System

Wall-mounted inverter board production uses automated machine plug-ins. Improve efficiency, reduce loss, and enhance stability Solar energy system
QC System ICT test, pinhole alignment PCB board, check all lines, reduce the failure rate. Solar energy system

Packaging

System

Power lower than 1KW inverter carton packaging, containing pearl cotton; power higher than 2KW inverter plywood wooden box packaging, containing pearl cotton. One piece one packaging. Solar energy system
Factory Inspection System Our inverter has passed 100 times of ultimate power-off test. According to statistics, 99% of the tested inverter can work very stable. Solar energy system
After Sales Service System All inverters are free to send new spare boards within the warranty. For more services, please click the link to view.

Solar inverter board production: use automated machine plug-ins. Improve efficiency, reduce loss, and enhance stability.

                        How to control solar power system (Gel Battery) quality?
System System Essentials Pictures

Supply

System



1. Battery case, ABS material conforming to UL94HB and UL94V-0 standards, no color difference, no crack.

2. The unique lead-calcium grid improves the hydrogen evolution potential, reduces gas evolution, reduces corrosion rate, and extends battery life.

3. The use of copper terminals, excellent conductivity and high wear resistance, enhances high current discharge performance;

4. High quality AGM partition for partition



Solar energy system

Production

System



1. Battery plate production workshop, independent production of positive and negative plates, effectively ensuring the quality of the plates

2. Semi-automatic cladding machine): Semi-automatic double-layer cladding technology, double-layer separator can better prevent short circuit of the pole plate. The semi-automatic double-layer board process ensures that the packaged groups are neat, beautiful and clean.

3. Automatic slotting machine: higher efficiency, saving the process involved in manual slotting, avoiding the human contact group, maximizing the protection of the pole group, making the battery have very good self-discharge performance, battery consistency, total Voltage consistency.



Solar energy system
QC System



1. DC spectrometer: high precision detection of lead purity to ensure purity above 99.994%

2. High current detector: ensure that each battery is under high current, whether charge and discharge normal

3. Large battery tester: Under high current, whether the bus bar of the battery has a problem of melting and short circuit

4. Internal resistance meter: Make sure that the internal resistance and voltage of each battery are normal, and the consistency of the battery.



Solar energy system

Packaging

System

Carton packaging, use the inspection-free pallet to hold the shipment Solar energy system
Factory Inspection System

QC inspection qualified products, distinguish the identification zone placement, ensure the shipment quantity, model, customer name is correct

After Sales Service System

Free replacement of new batteries during the 2-year warranty period if have any quality problem



Solar system application:
