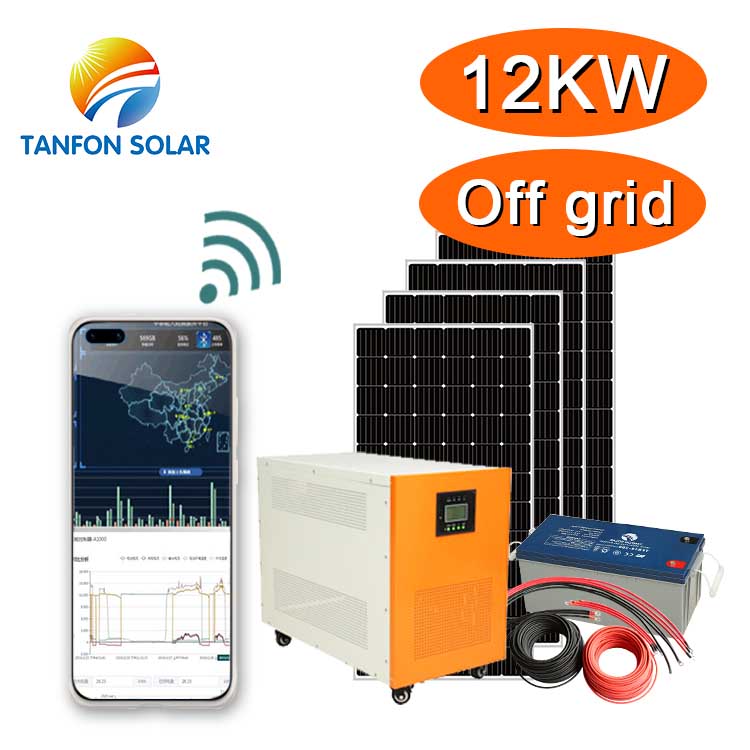

12KW Off Grid Solar Power System For Home

Product Specification:
  • Brand Name : TANFON SOLAR
  • Model Number : solar inverter 12kw
  • DC voltage : 48V
  • Output voltage : 110V/220V
  • Advantage : German Technology
Inquiry Now
Product Details
One-stop service
Customer Feedback



solar battery storage system 12kw solar power system

High-end solar storage system

solar power system

FS350W mono solar panel(poly optional)

Vmp:38.39V  Voc:47.13V

Imp 9.25A

Size : 1956*992*40mm

25 years life time  (CE TUV)

Coated steel Glass:3.2mm Tem pered

Terminal block:IP65 with MC4 connector

Efficiency performance :25 years 80 % 20 year 85% 10 years 90%

solar power system

Model:H6T-96v Multiple PV strings inputs

and controller, Prevent hot spot effect

Reliable thunderstorm& surge protection

Product Size:400*425*145mm

solar power system

controller+inverter

PV  controller model:96V/60A

Charging efficiency; 90%-95%,

charging mode, intelligent control.,

various protection functions;

IGBT Inverter:12KW96VDC

110V/120V/220V/230V/240VAC output,

City power and generator charger build in Overload, overcharge, over-discharge protection  Fuji brand IGBT material

Solar Battery

Capacity: 12V/200AH

Full sealed Solar power system gel battery,

Service life: 6-8 years ,

Size:522*240*219mm

solar power system

Slope Rooftop or Flat rooftop

including complete fittings

wind load:55m/s,snow load:1.5kn/m2

structure:Anodized Aluminum+stainless steel, Angle adjustable

solar power system

1)4pcs 16mm2*2M battery cable.

2)4mm2 PV cable 100M,50M black 50M red.

3)1set PV terminals and MC4

4)1P 63A Battery switch and box

Remark:

Compared with the traditional solar battery,it saves space and doubles the lifespan.Can be well used in home solar system,commerical solar systems, and industrial solar systems.



                        How to control solar electricity PV system(solar panel)  quality?
System System Essentials Pictures

Supply

System

1. Solar cell: Dark color, black, no color difference

2. Solar Cell shape: corner piece

3. Solar cell efficiency: 21%

solar home system

Production

System

1. Classification of solar cell with different colors, powers and efficiencies using automatic sorting equipment

2. EL test of the solar cell by EL device to ensure that the solar cell is not cracked

3. Components are fully automated production line operations

solar home system
QC System

1. EL tester tests the solar cell to ensure no cracks

2. The component tester performs EL and data testing before component packaging to ensure data is acceptable and components are not cracked.

3. Component products are monitored with data from a tester to ensure data is correct

solar home system

solar home system

Packaging

System

1. Can be packed in carton box or wooden cases

2. The solar panel is in an upright packaging mode to reduce the transport breakage rate

solar home system

Factory Inspection System

QC inspection qualified products, distinguish the identification zone placement, ensure the shipment quantity, model, customer name is correct.
After Sales Service System Free replacement of new solar panel during the 10-year warranty period if have any quality problem.

Solar panel production video: Classification of solar cell with different colors, powers and efficiencies using automatic sorting equipment

              how to control solar electricity PV system(Solar Inverter) quality?
System System Essentials Pictures

Supply

System

1. Since the establishment of our inverter factory, we have been purchasing transformers and capacitors from the same supplier.

2. MOS tube adopts imported IR brand

3. SCR adopts imported from Germany

4. IGBT adopts Japanese Mitsubishi brand

solar home system

solar home system

Production

System

Wall-mounted inverter board production uses automated machine plug-ins. Improve efficiency, reduce loss, and enhance stability solar home system
QC System ICT test, pinhole alignment PCB board, check all lines, reduce the failure rate. solar home system

Packaging

System

Power lower than 1KW inverter carton packaging, containing pearl cotton; power higher than 2KW inverter plywood wooden box packaging, containing pearl cotton. One piece one packaging. solar home system
Factory Inspection System Our inverter has passed 100 times of ultimate power-off test. According to statistics, 99% of the tested inverter can work very stable. solar home system
After Sales Service System All inverters are free to send new spare boards within the warranty. For more services, please click the link to view.

Solar inverter board production: use automated machine plug-ins. Improve efficiency, reduce loss, and enhance stability.

Solar system application:

solar home system

solar electricity PV system

solar home system
