100kw Solar Panel System Kit With Battery Design Price In South Africa

Product Specification:
  • Brand Name : TANFON
  • Model Number : 100KW Solar Panel System Kit
  • DC voltage : 360V
  • Output voltage : 110/220V/380V/415V
  • Advantage : German Technology
  • Certificate : ISO, ETL, TUV, CE, RoHS
  • Payment : T/T, L/C, Paypal, Western Union
Inquiry Now
Product Details
One-stop service
Customer Feedback

  • The off-grid solar system is used in areas completely disconnected from the grid. It uses solar energy during the day and the electricity stored in the battery at night to achieve 24-hour use of electricity

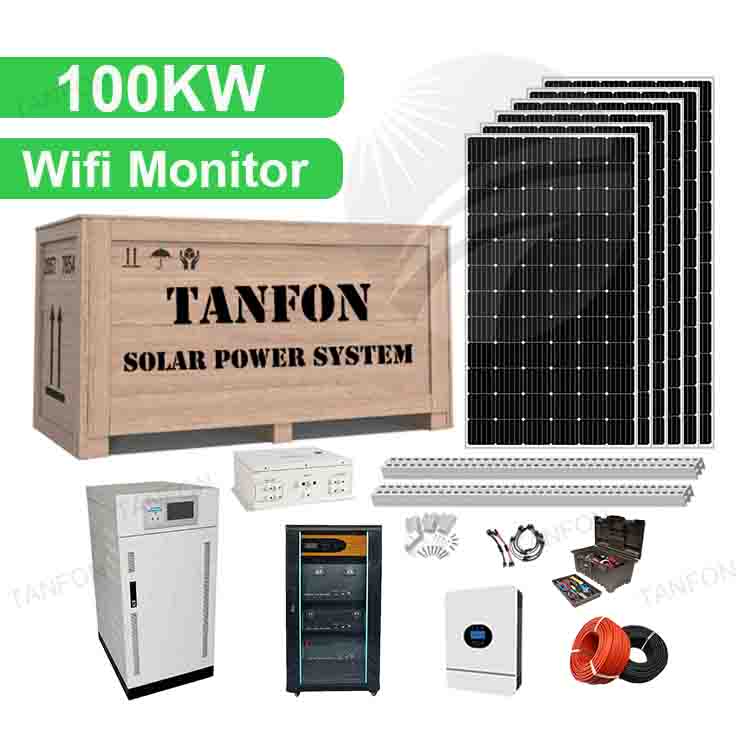

What's Included:

TANFON 100kw Solar Panel System Kit With Battery Design Price In South Africa
380W Solar Panel 260(Pcs)
Hybrid Inverter 100KW Solar inverter
H10T PV Combiner Box 2 (Set)
360V/80A Solar controller 2 (Set)
Gel Battery 2V 1000AH
Quantity of Battery 180 (Pcs)
DC Cable 100 (m)
Mounting System Customized
Battery Rack Customized
Battery cable+PV cable 1 (Set)
Monitoring System 1 (Set)
PV Tools Full set
Total Information volume:52CBM Weight:16852KG
Installation area solar panel:520m²-inverter+battery:20-60m²

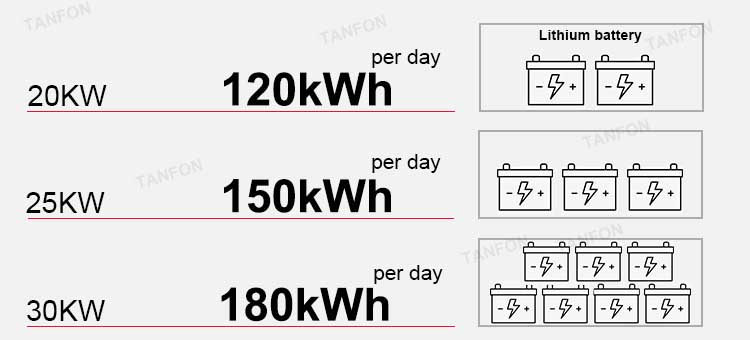

Note: The electricity produced every day in the picture is the maximum value reached after 6 hours of sunlight.



Product details (100kw Solar Panel System Kit With Battery)

FS380W mono solar panel(poly optional)

Vmp:38.39V  Voc:47.13V  Imp 9.75A

Size : 1956*992*40mm

25 years life time  (CE TUV)

Coated steel Glass:3.2mm Tem pered

Terminal block:IP65 with MC4 connector

Efficiency performance :25 years 80 % 20 year 85% 10 years 90%

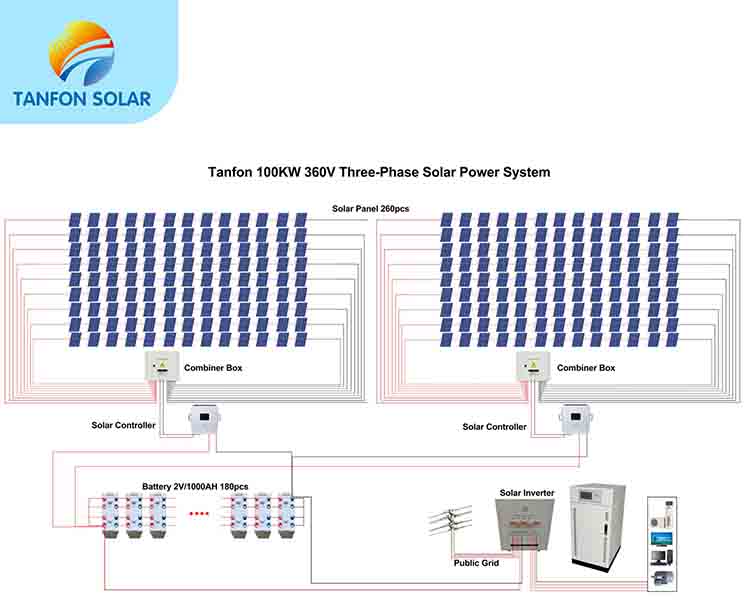

Connect:each 13pcs in series, 4strings in series

PV combiner

Model:H10T-360v  Multiple PV strings inputs

Simplify wiring between PV array

and controller, protections  to controller ,

Wide range of DC input voltage

Reliable thunderstorm& surge protection

MPPT controller model: 360V/150A

Charging efficiency; 90%-95%,

charging mode, intelligent control.,

various protection functions;

Can read daily,monthly and total power generation

Solar three phase Inverter power:SC100kw/360v

WiFi signal receiving module

Low voltage:324V High voltage:442V,

Charging efficiency; 90%-95%,with AC charger built-in, Protection against short-circuit,

Output: 380V 415V 50/60HZ

Solar battery

1)Gel battery,2 years warranty.

ship NEW for service.

2)Lithium battery,3 years warranty.

ship NEW for service.

Monitoring system
Data Logging Stick allows you to receive information from solar power system, in order to keep you informed about the situation of
your PV system, and the atmosphere conditions, everywhere and every time, thanks to our web server, accessible via Wi-Fi,Lan or GPRS. for PC, IOS & Andriod

Slope Rooftop or Flat rooftop

including complete fittings

wind load:55m/s,snow load:1.5kn/m2

structure:Anodized Aluminum+stainless steel, Angle adjustable

1)58pcs 16mm2*35CM battery cable

4pcs 16mm2*2M battery cable

25mm 20M power cable

2)4mm2 PV cable 100M*2pcs

3)terminals and MC4+2P100A Power switch box

Installation Tools

hammer*pliers*screwdriver

Disassembly tool gloves

Screwdriver 5mm

Disassembly tool

Most Complete Configuration

Configuration is most complete on the market, which includes all necessary components. After the installation is complete, it can be directly used by household appliances.

Super load capacity, with complete short circuit protection, overvoltage protection, overload protection, backfill protection, insulation resistance protect

Contact our sales representative and provide a monthly electricity bill or total load. Our technicians can calculate the solar power system that suits you.



Transport Packaging

Can be packed in carton box or wooden cases, The solar panel is in an upright packaging mode to reduce the transport breakage rate, Free replacement of new solar panel during the 10-year warranty period if have any quality problem.



How to install (100kw Solar Panel System Kit With Battery)?

When you become a user of tanfon products, you can get our technical support, Tanfon Team also have Video install support+install drawing +Step by step installation instructions.



Overseas Projects:

Our products have been sold to more than 120 countries, (solar home project,solar school project ,solar hospital project,solar farm project ,solar hotel project,solar air port project ,solar millitary project ,Solar energy water treatment equipment project,solar goverment project etc)

we have a professional installation team, which has been to 32 countries and regions ( Egypt, Bangladesh, Chad, Nigeria,Thailand,Ghana, Doha, East Timor state, Pakistan, kenya ,indonesia ,Dubai,Mozambique etc.) for installation service. We also win many good feedbacks from the customers.

More tanfon cases



Customer service:

After 12 years of deep cultivation, we have successfully helped 28 customers to grow up and cooperate together to develop the local market more comprehensively.

Specializing in installing projects from design, detailing, fabrication to erection, having continue cooperation with engineers, exclusive agents and the foreign business partners, we are now sincerely hoping to join hands with you to create a better future together at the principle of win-win cooperation (send inquiry to know more)



Overseas exhibitions:



Tanfon Solar APP Super Advantage:
1)One Phone remote control ALL solar system
2)Troubleshoot and reduce maintenance costs
3)Develop your brand APP to competitiveness



TANFON mission: Make the world away of the expensive electricity.

TANFON advantage: German technology, Chinese prices, global service.

Q1. Are you factory?

A1. Yes, our factory and sales department are located in Foshan and we would be pleased to welcome you in our factory at any time when you are in Foshan.



Q2. How long is solar power products warranty?

A2. YES, products are at least 8 years warranty.



Q3. What is the shipping way of solar power products?

A3. Ship by sea.



Q4. What is the payment method?

A4. We normally require a T/T advance payment. 30% deposit and 70% before shipping. Western Union / MoneyGram /Alibaba can also be used.



Q6. Can we add our logo on products?

A6. YES.you can add your logo on products.



Q7. Can we customize product?

A7. YES. OEM & ODM.



Q8. What is TANFON solar power products after sales service

A9. During the warranty, ship free PCB by DHL or FEDEX.



Q9. What is your trade Asusurance

A10:100% product quality protection

        100% product on time shipment protection

        100% payment protection for your covered amount

 If you have more question, welcome to contact us freely, Choose TANFON, Choose Satisfaction!
