Solar Charge Controller

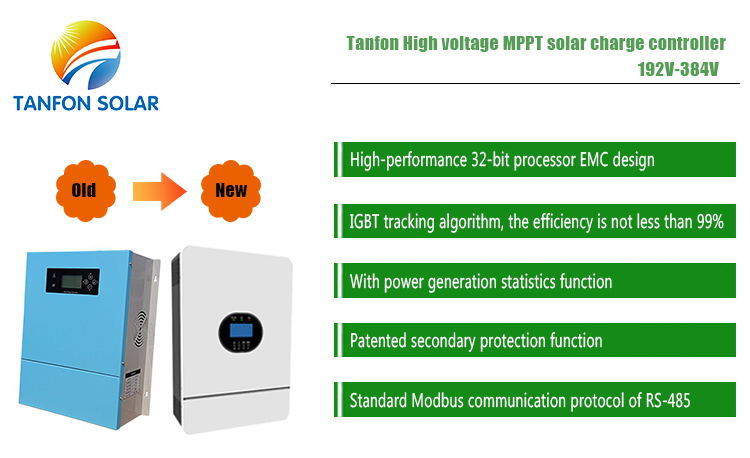

360V MPPT solar charge controller

Product Specification:
  • Brand Name : TANFON
  • Model Number : HP360V/70A-150A
  • Materials : IGBT
Inquiry Now
Product Details
One-stop service
Customer Feedback

solar charge controller



  1. 192V/360V/384V Intelligent solar controller power generation display.
  2.  Have stronger IGBT module PV off-grid inside
  3. IGBT modularization to reduce the failure rate and improve service life
  4. Industrial-grade chips ensure stable performance
  5. Advanced battery activation technology keep full capacity
  6. Three charging stages: Fast charging, equalize charging and float charging
  7. It has the function of generating capacity display
  8. Can display the daily generating, monthly generating and total generating
  9. Have Large LCD screen simulation display and touching key

Model

HP360V70A-150A

Electrical Parameter

Rated system voltage

360V

Max. input voltage

700V

Rated charging current

70A

80A

100A

120A

150A

No. of input

1 group

No-load loss

<0.5W

Equalize voltage

432.0V

Adjustable

Equalize recovery voltage

396.0V

Equalize charging time

120 Minutes

Float voltage

414.0V

Over voltage disconnect

480.0V

Over voltage reconnect

450.0V

Environment Parameter

Display

3’’ LCD (White backlight)

Display language

English

Indicator light

Error indicator/Charging indicator

Terminal type

TC Series barrier terminal

Humidity

0~98%, non-condensing

Environment temperature

-25°C +55°C

Elevation

≤4000M, should reduce power if the elevation high than 4000M

Protection level

IP32

Noise

<30dBA

Dimension

420*345*157mm

Weight

11KG

12KG

13KG

Package information

Hard box with pearl sponge

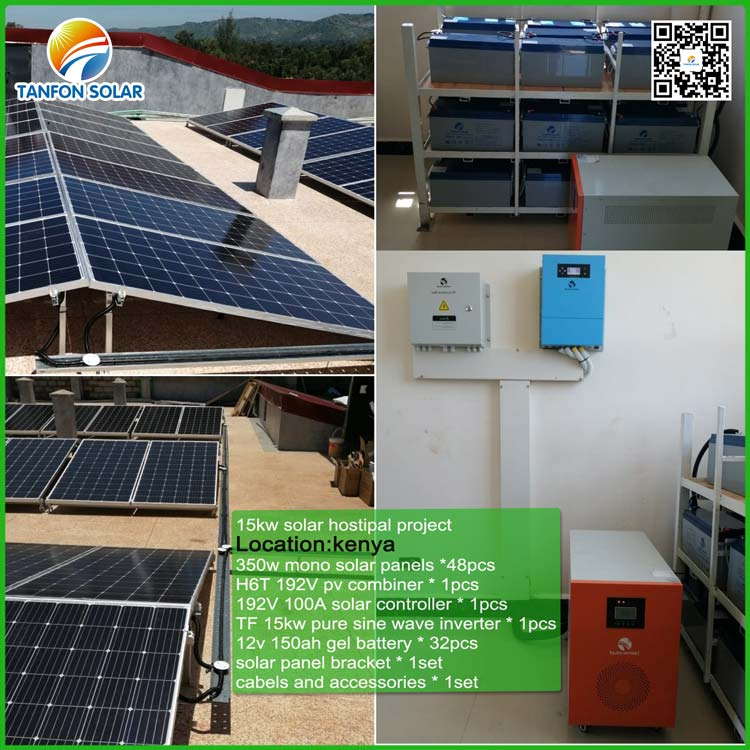

install project:

MPPT controller

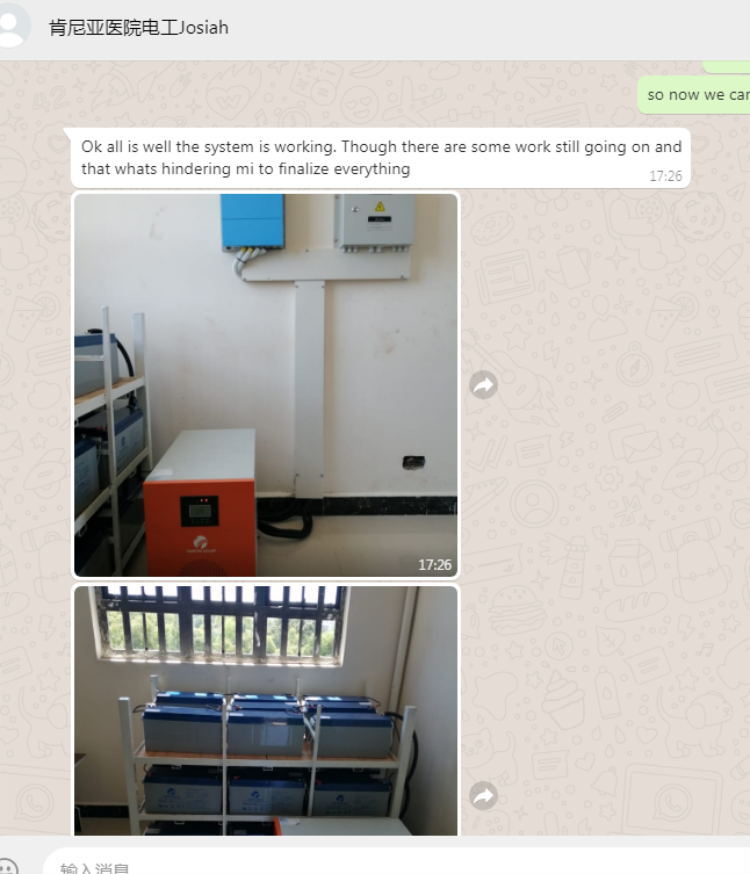

customer Feedback:

solar charge controller

solar controllersolar mppt controller
