Solar Charge Controller

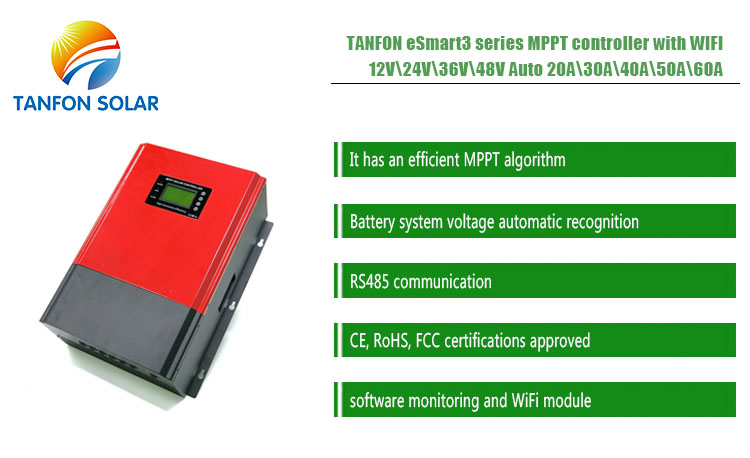

12V/24V/36V/48V Auto 20A-60A MPPT charge controller with WIFI

Product Specification:
  • Brand Name : TANFON
  • Model Number : eSmart3 series
  • Output Power : 20A-60A
  • :
Inquiry Now
Product Details
One-stop service
Customer Feedback

MPPT charge controller

Features

  1. It has an efficient MPPT algorithm, MPPT efficiency ≥99.5%,and converter efficiency up to 98%.
  2. Charge mode: three stages (constant current, constant voltage, floating charge), it prolongs service life of the batteries.
  3. Four types of load mode selection: ON/OFF, PV voltage control, Dual Time control, PV+Time control .
  4. Battery system voltage automatic recognition.
  5. Three kinds of commonly used lead-acid battery (Seal\Gel\Flooded) parameter settings fcan be selected by the user, and the user can also customize the parameters for other battery charging.
  6. It has a current limiting charging function. When the power of PV is too large, the controller automatically keeps the charging power, and the charging current will not exceed the rated value.
  7. High definition LCD display function to check the device running data and working status, also can support modify the controller display parameter.
  8. RS485 communication, we can offer communication protocol to convenient user’s integrated management and secondary development.
  9. Support PC software monitoring and WiFi module to realize APP cloud monitoring.
  10. CE, RoHS, FCC certifications approved, we can assist clients to pass various certifications.
  11. 2 years warranty, and 3~10 years extended warranty service also can be provided.



Parameter





eSmart3 series

eSmart3-20A

eSmart3-30A

eSmart3-40A

eSmart3-50A

eSmart3-60A

Product category

Controller Properties

MPPT (maximum power point tracking)

MPPT efficiency

≥99.5%

Standby power

0.5W~1.2W

System voltage

Automatic recognition

Heat-dissipating method

Intelligent fan cooling

Input

Characteristics

Max.PV input voltage(VOC)

DC150V

Start the charge voltage point

Battery voltage + 3V

Low input voltage protection point

Battery voltage + 2V

Over voltage protection point

DC150V

Rated PV power

12V system

260W

390W

520W

650W

780W

24V system

520W

780W

1040W

1300W

1560W

36V system

780W

1170W

1560W

1950W

2340W

48V system

1040W

1560W

2080W

2600W

3120W

Charge Characteristics

Selectable Battery Types

(Default Gel battery)

Sealed lead acid, Gel battery, Flooded

(Other types of the batteries also can be defined)

Charge rated current

20A

30A

40A

50A

60A

Charge Method

3-Stage: constant current(fast charging)-constant voltage-floating charge

LOAD Characteristics

Load voltage

The same as the battery voltage

Load rated current

40A

60A

Load control mode

On\Off mode, PV voltage control mode,

Dual-time control mode, PV + Time control mode

Display &

Communication

Display mode

High-definition LCD segment code backlight display

Communication mode

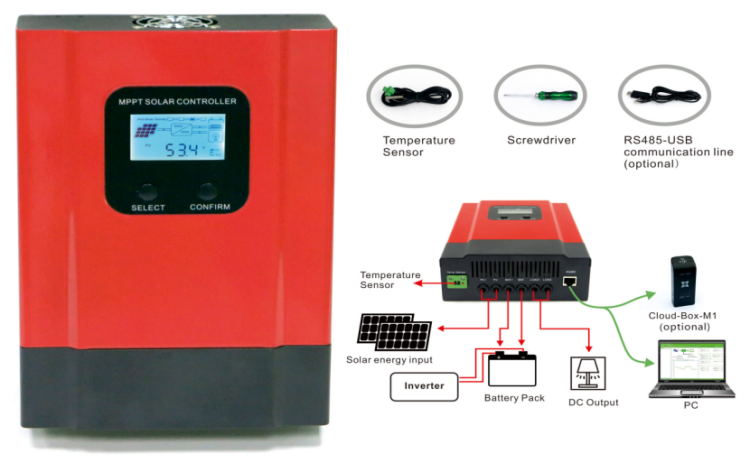

8-pin RJ45 port/RS485/support PC software monitoring/

support WiFi module to realize APP cloud monitoring

Other Parameters

Protect function

Input-output over \ under voltage protection,

Prevention of connection reverse protection,battery shedding protection etc.

Operation Temperature

-20℃~+50℃

Storage Temperature

-40℃~+75℃

IP(Ingress protection)

IP21

Max. connection size

20mm2

30mm2

Net Weight (kg)

2.3

2.6

Gross Weight (kg)

3

3.5

Product Size(mm)

240*168*66

270*180*85

Packing Size(mm)

289*204*101

324*223*135



drawing:

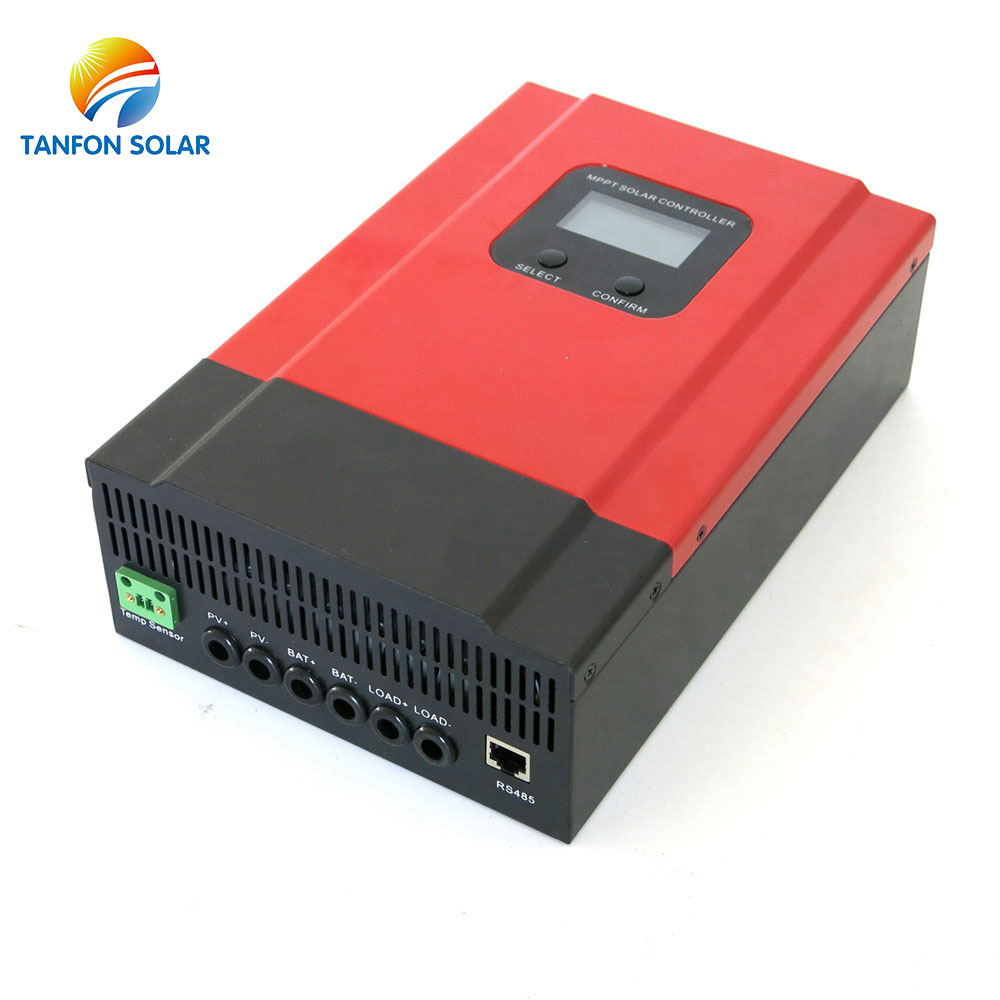

  1. MPPT charge controller
