On Grid Solar Inverter
3 phase on grid inverter 40kw 45kw 50kw solar grid tie inverter suppliers
Product Specification:- Brand Name : TANFON
- Model Number : HBF10~HBF20KW
- Output Power : 10KW~20KW
- Output Type : Three phase
You May Like

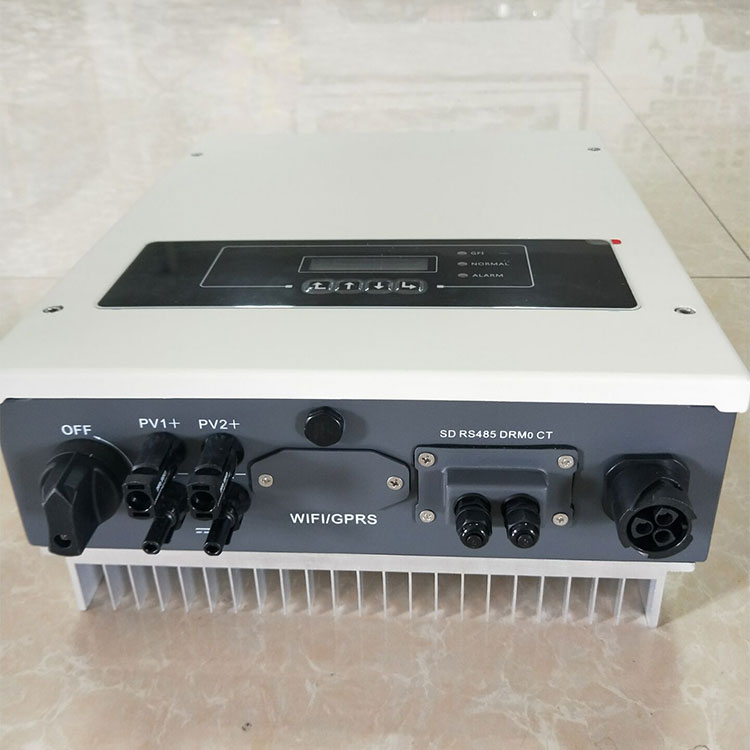

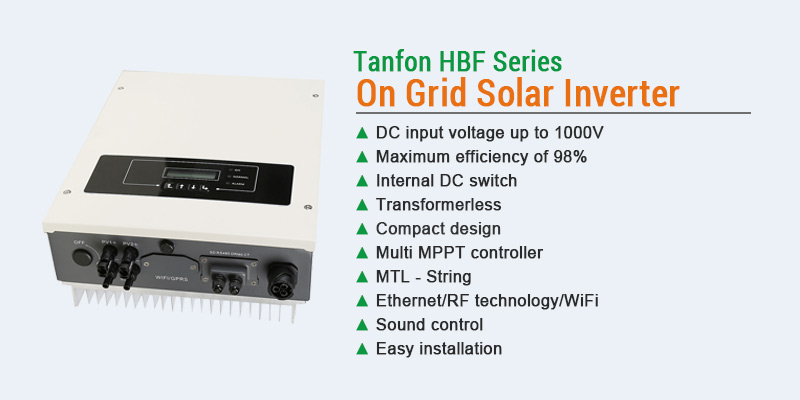

HBF series 100kw on grid solar inverter description
1. Real time monitors inverters remotely by data logger
2. Multilingual support available
3. Efficient non-isolated topological structure
4. Temperature range -25ºC to 60ºC, Compact design, easy to install
Product Feature
1. Controlled by TI Digital DSP
2. Controlled by high efficient MPPT to track the maximum PV output, MPPT rate >99%
3. Pure sine wave output, automatic synchronization to grid, low harmonics
4. Anti-island protected by disturbance detection
5. Excellent functions of protection and alarm
6. Optional CAN, Ethernet, RS485, Bluetooth ports and remote data collection
Technical Data
| Tanfon HBF series three phase on grid solar inverter 30kw to 100kw | ||||
| Model | HBF30K | HBF50K | HBF100K | |
| Delivery period(Week) | 1 | |||
| Type | Outdoor | Indoor | ||
| Input | Max DC power | 31KW | 52KW | 110KW |
| Max. DC input voltage | 1000V | |||
| MPPT voltage range | 480V-960V | 480V-960V | 480V-960V | |
| Rated input voltage (V) | 600V | |||
| Maximum input current | 42A | 42A | 42A | |
| Number of MPPT inputs | 2 | |||
| Number of DC inputs | 4 | |||
| Output | Rated power | 30KW | 50KW | 100KW |
| Rated AC voltage | 220/380V | |||
| Rated frequency (Hz) | 50Hz/60Hz | |||
| Max. output current (A) | 16.1A | 24.2A | 31A | |
| THD (rated power) | <2% | |||
| Power factor at rated power | ≥0.99 | |||
| Connection phases | three phase | |||
| Efficiency | Max. efficiency | 98% | ||
| European efficiency | 96.70% | |||
| Physical | Dimensions (W) (mm) | 767*564*291 | 737*713*297 | |
| Weight (Kg)/per unit | 68 | 70 | 125 | |
| Degree of Protection | IP65 | |||
HBF series 100kw on grid solar inverter use for grid tie solar system
Working circuit diagram
Project
Workshop
Tanfon Certificate
Inverter Packing
We accept OEM order, contacting with us now for more information. All inquiries will be replied with in 24 hours.
