tanfon inverter

TF series solar inverter for home feature:

Super wide input voltage: 145V---280VAC;
Completely controlled by CPU,
Protection against output short-circuit; Against overload, and when you throw off its load, it will turn on the unit automatically.
Functions that when the AC comes in, it will start the unit automatically.
Different DC volage: 12V, 24V, 36V, 48V, 96V, 192V, 240V for optional
Output pure sine wave: 220V+-3%.
It can drive impactive loads, such as lightings, TV sets, fans, refrigerators and air-conditioner, wind power motor, solar panel etc.
It's humanized design, when the AC comes, it will start the unit automatically; And when it overload, it will also close the unit automatically, when you cancel the load, then it will return to work automatically.
ATM inverter, RS232 software, SNMP card for optional.

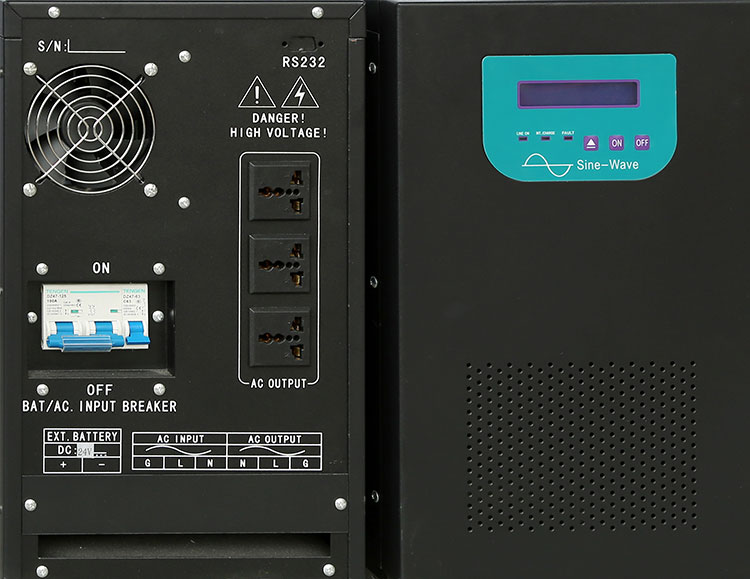

TF series solar inverter for home details:

TF series solar inverter for home technical data:

Model	TF3K	TF4K	TF5K	TF6K
Capacity(W)	3000	4000	5000	6000
DC voltage(V)	48	48/96	48/96	48/96
Input voltage(V)	160-265VAC
Input frequency	45-65HZ
Output voltage	Four steps AVR, 110V/120V/220V/230V for optional
Output wave form	Pure sine wave
THD	≤ 3%
Low-voltage protection(V)	39/78	39/78	39/78	39/78
Over voltage protection(V)	60/120	60/120	60/120	60/120
Recharge current	15-25A	15-25A	20-30A	15-25A
Unit size(mm)	473220386		473230490
Transfer efficiency	87%--90%
Protections	Protection against short-circuit, over load, high-voltage, reverse polarity protection and low-voltage protection
Over load	120% of the rate capacity
Short circuit	300% of the rate capacity
