Off Grid Solar Inverter
Wall-mounted Pure Sine Wave Solar Inverter 300w-6kw
Product Specification:- Brand Name : TANFON SOLAR
- Model Number : solar inverter 300w-6kw
- DC voltage : 12V-48V
- Output voltage : 110V/220V
- Advantage : German Technology
- Certificate : ISO, ETL, TUV, CE, RoHS
- Payment : T/T, L/C, Paypal, Western Union
You May Like

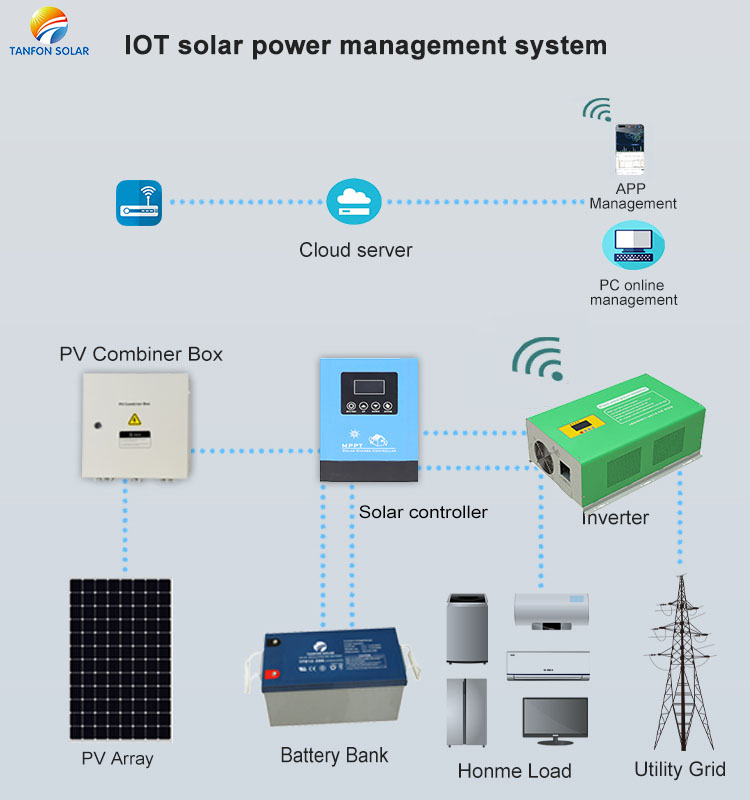

Tanfon Solar APP Super Advantage:
1)One Phone remote control ALL solar system
2)Troubleshoot and reduce maintenance costs
3)Develop your brand APP to competitiveness
5000 watt off grid solar power inverter details
|
Model |
NW5KW |
|
|
Rated Power |
5KW | |
|
Peak Power |
15KW |
|
|
Nominal battery voltage |
48VDC |
|
|
Comnunication |
RS-232/USB/SNMP(additional option) |
|
|
Input |
DC input range |
10.5-15VDC (12V) / 21-30VDC (24V) / 42-60VDC (48V) |
|
AC Mains input range |
140-275VAC (220/230/240VAC) ±4% |
|
|
AC input frequency |
50Hz: 45-65Hz / 60Hz: 55-65Hz±0.5Hz (50Hz/60Hz automatic recognition) |
|
| Output |
Output voltage |
(DC battery mode)220/230/240VAC±2% / (AC mains mode)220/230/240VAC ±10% |
|
Output frequency |
(DC battery mode) 60/50Hz±1%/(AC mains mode) automatic tracing from AC input |
|
|
Working mode |
AC mains priority/Energy saving/DC battery priority |
|
|
Environment |
-20~+75℃ |
|
|
Product size (mm) |
630*280*200mm |
|
|
Weight (kg) |
31KG | |
5000 watt off grid solar power inverter application
5000 watt pure sine wave inverter for off grid solar power system，also can be used for hybrid solar wind power generation system.
Certificate
We have ISO9001, CE, RoHS etc.
Why Choose TANFON Products?
1.Sample service:Applicable to quality test,function test etc
2.Repair service:Two year warranty
3.Perfect after sales service system:Contact us ,we will help you quickly find the problem,then give you fast service .
4.ODM service:Powerful R&D department can provide professional technical support
5.OEM services:More than 100 pieces ,you can decide the trademark and package
6:Quality utmost:Each inverter has tested by power-off test of 100 times per hour.
