Off Grid Solar Inverter

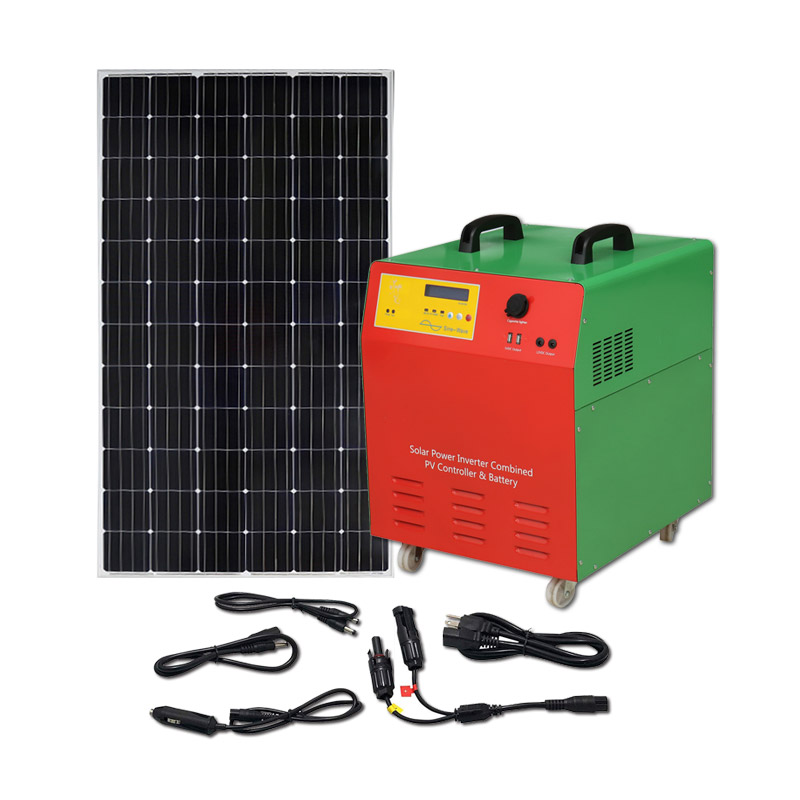

All in one inverter 500w portable solar generator
Product Specification:- Brand Name : TANFON
- Model Number : SCB500W
- Output Power : 500W
- Output Type : Single
You May Like

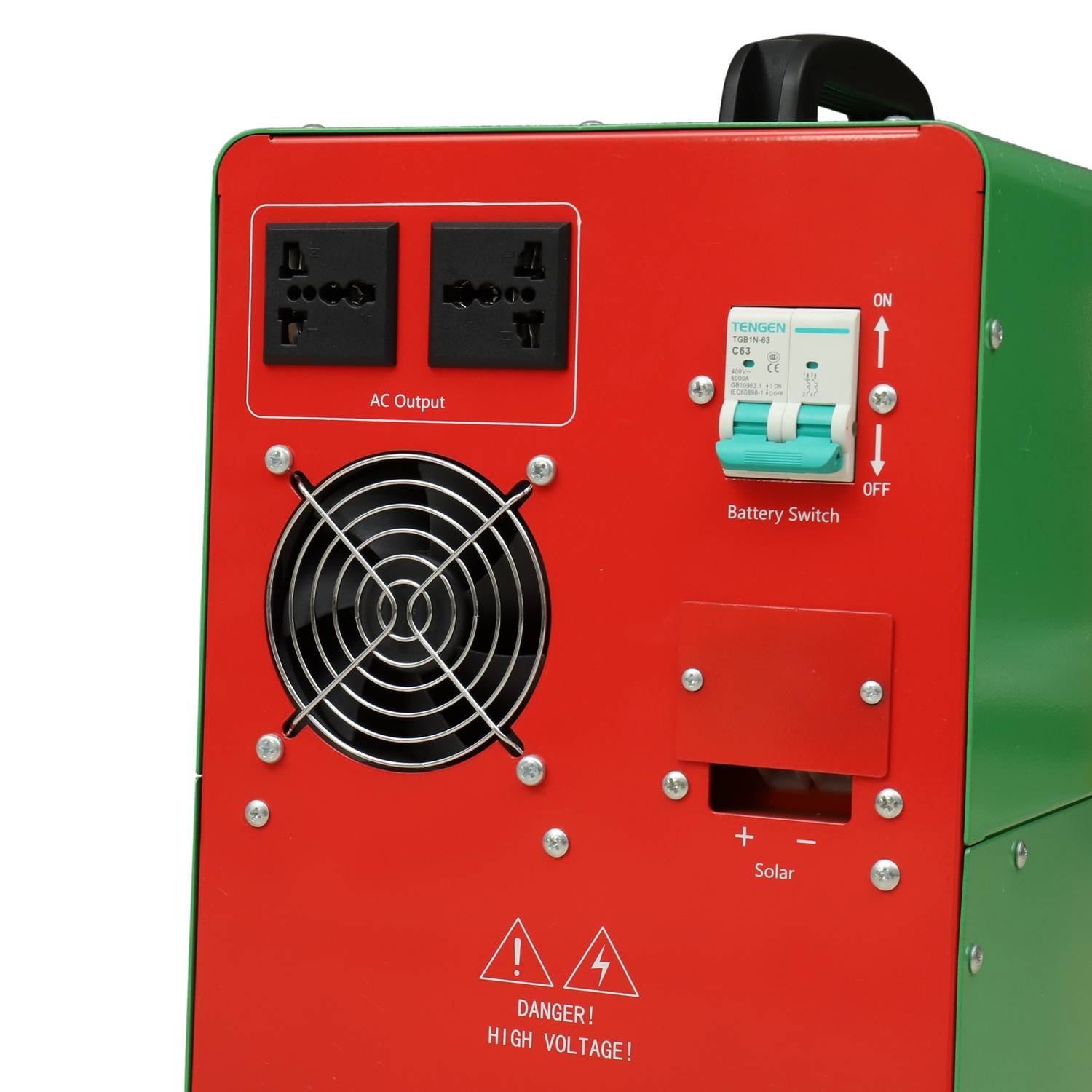

SCB series portable solar inverter generator features:
1.Solar power controller and inverter with AGM free maintenance battery together
2.Completely controlled by CPU.
3.Inverter use copper transformer, pure sine wave output.
4.Have 5V,12V DC output.

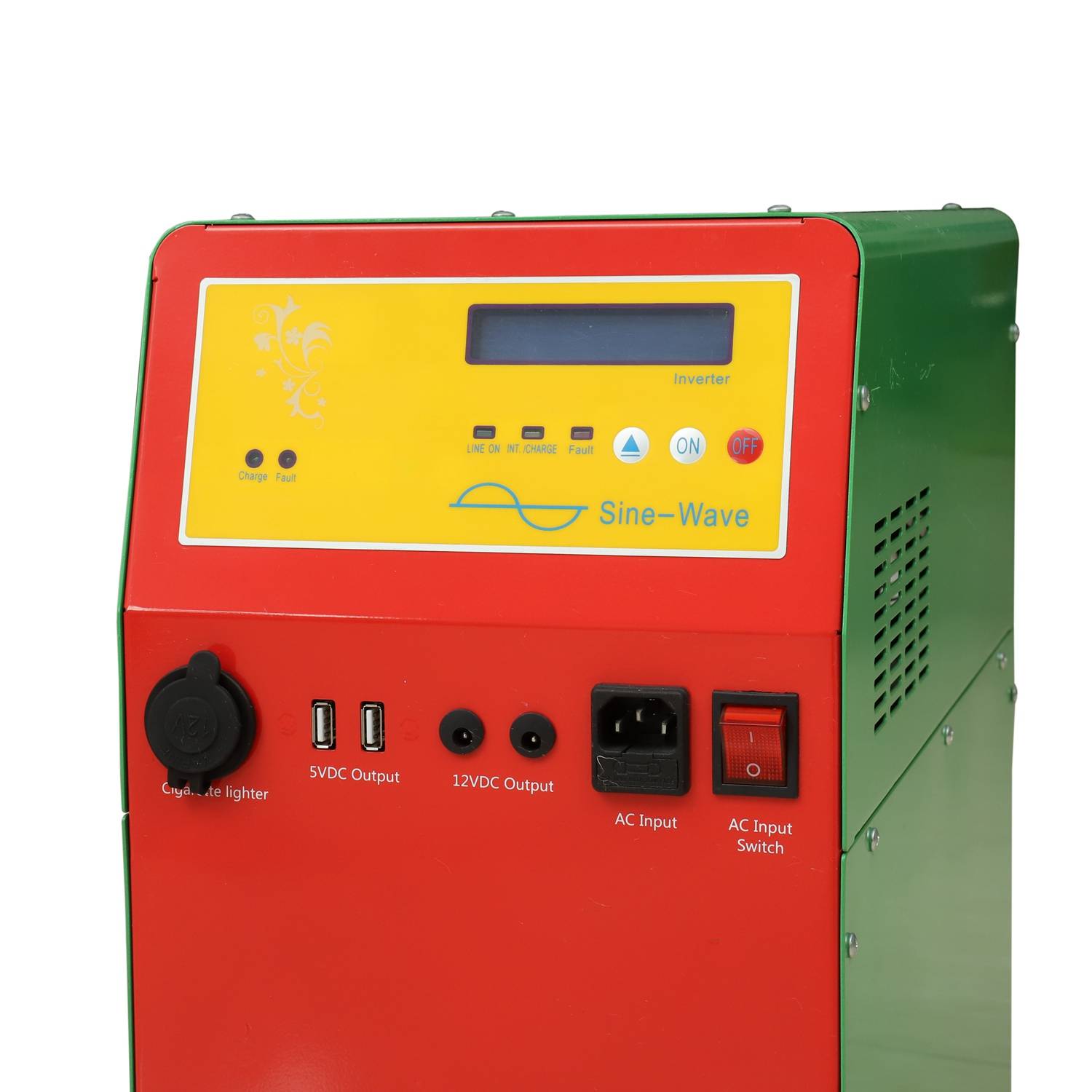

5.Two LCD displays, clearly to know the status.
6.have bypass function and AC charger (UPS function)
7.Protect against anti-charge at night, battery over charger/over discharge, output short-circuit, against overload, against over-voltage, over-current protection ,etc.
SCB series portable solar inverter generator technology parameter:

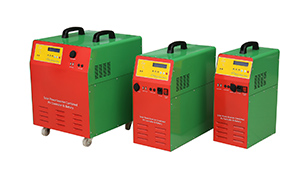

SCB100W ~ 300W
| Model | SCB500W | |
| Rated power(W) | 500W | |
| Rated DC voltage(V) | 12V | |
Line input |
Input voltage(V) | 165-275V |
| Charge current(A) | 42A | |
| Inverter output | AC Output voltage(V) | 220VAC±5% |
| DC output voltage(V) | 5V&12V | |
| Output frequency | 50Hz/60Hz±1% | |
| Wave form | Pure Sine Wave, THD<4%(Full Load) | |
| Solar input | Maximum voltage(V) | 21 |
| Rated power(Wp) | 500 | |
| Charge current(A) | 20 | |
| MPPT range(V) | 12V-25V | |
| Charging efficiency | 90%-95%, Peak on 97% | |
| Battery | Capacity(AH) | 55AH*1 |
| Over charge protective voltage(V) |
14.3 | |
| Over charge recover voltage(V) |
13.7 | |
| Over discharge alarm voltage(V) |
20 | |
| Over discharge recover voltage of battery(V) |
12.5 | |
| other | Voltage drop between solar module and battery(V) |
≤0.3V |
| Voltage drop between loads and battery(V) |
≤0.15V |
|
| Start speed of cooling fan | Have | |
| Environment Humidity | 0-90% Maximum,non-condensable | |
| Protective Functions | Protection against anti-charge at night;Battery over charge/ over discharge protection; Joint-reversed of solar modules |
|
| Control method | MPPT | |
| Product Size :D*W*H(mm) | 343*225*443 | |
| Package size | 420*290*490 | |
| N.W./G.W.(kg) | 21/23 | |
SCB series portable solar inverter generator application
Case
Tanfon inverter packing
Tanfon factory
12 years experience in the inverter industry, can design as per customer needs, and OEM/ODM production.
ICT test, pinhole alignment PCB board, check all lines, reduce the failure rate.
Our inverter has passed 100 times of ultimate power-off test. According to statistics, 99% of the tested inverter can work very stable.
Pre-sale: VIP service attitude, reply to inquiry within 5 minutes, design suitable products for customers.
In-sale: Update production information for customers every day to inform production status.
After-sale: One-to-one installation service support; engineer team provides technical support in 24 hours.
Tanfon certificate
We have ISO9001, CE, RoHS etc.
We accept OEM order, contacting with us now for more information. All inquiries will be replied with in 24 hours.
