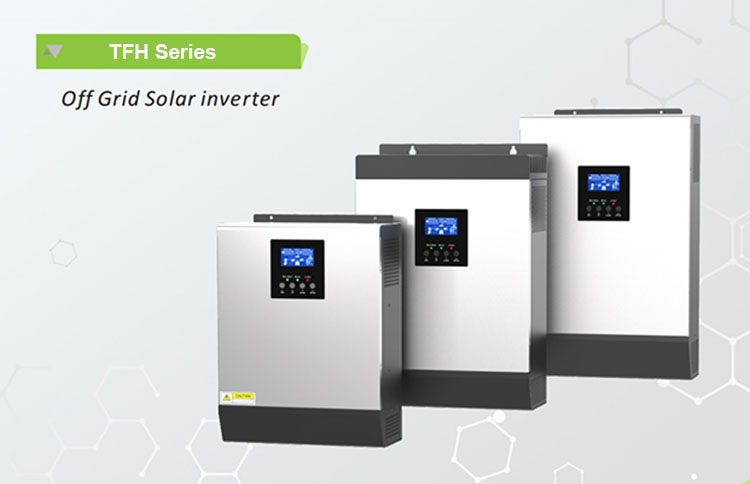

5KW 5KVA High Frequency Parallel Solar Power Inverter

Product Specification:
  • Brand Name : TANFON SOLAR
  • Model Number : 5KW Solar Inverter
  • DC voltage : 48V
  • Output voltage : 110V/220V
  • Advantage : German Technology
Inquiry Now
Product Details
One-stop service
Customer Feedback



Features:

  • Pure sine wave inverter
  • Built-in MPPT solar charge controller
  • Selectable input voltage range for home appliances
  • and personal computers.
  • Selectable charging current based on applications
  • Configurable AC/Solar input priority via LCD setting

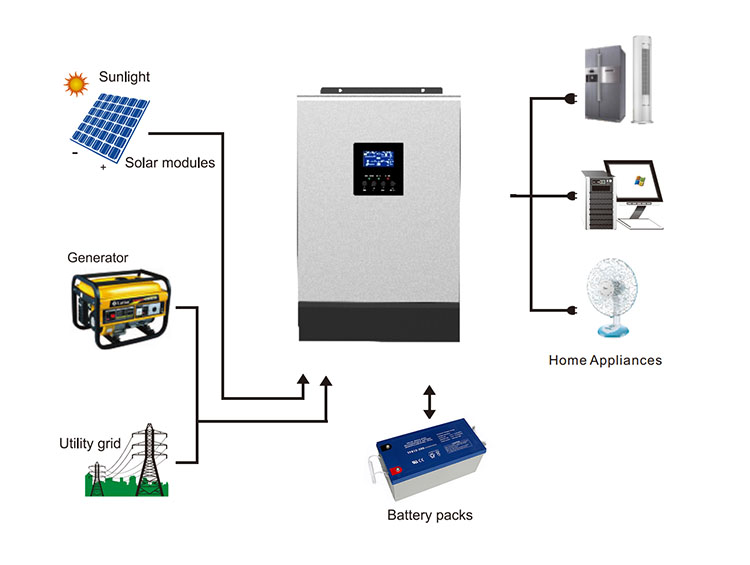

  • Compatible to mains voltage or generator power
  • Auto restart while AC is recovering
  • Overload and short circuit protection
  • Smart battery charger design for optimized battery
  • performance

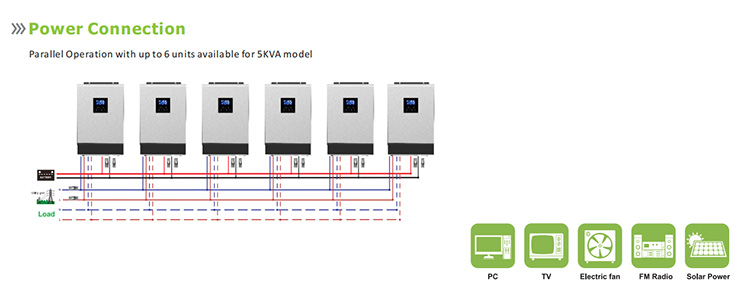

  • Parallel operation with up to 6 units (30KVA) only
  • available for 5KVA



MODEL
1K-24
3K-24
5K-48
Rated Power
1000VA/800W
3000VA/2400W
5000VA/4000W
INPUT
Voltage
230VAC
Selectable Voltage Range
170-280VAC(for personal computers)
90-280VAC(for home appliances)
Frequency Range
50Hz/60Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt.Mode)
230VAC±5%
Surge power
2000VA
6000VA
10000VA
Efficiency(Peak)
90-93%
93%
93%
Transfer Time
10ms (for personal computers)
20ms (for home appliances)
Wave form
Pure Sine Wave
BATTERY & AC CHARGER
Battery Voltage
24VDC
24VDC
48VDC
Floating Charge Voltage
27VDC
27VDC
54VDC
Overcharge Protection
31VDC
31VDC
60VDC
Maximum charge current
10A/20A
20A/30A
10A/20A/30A/40A/50A/60A
SOLAR CHARGER
MAX.PV Array Power
1000W
1000W
1500W
3000W/4000W
MPPT Range@ Operating Voltage
30-66VDC
30-66VDC
30-115VDC
60-115VDC
Maximum PV Array Open Circuit Voltage
75VDC
75VDC
145VDC
145VDC
Maximum Charging Current
40A
40A
60A
60A/80A
Maximum Efficiency
98%
Standby Power Consumption
2W
PHYSICAL
Dimension.D*W*H(mm)
368*272*128
367.6*272
439*296*141
540*295*140/468*295*136
Net Weight (kgs)
7.4kg
8.0kg
10kg
11.5kg/13.5kg
OPERATING ENVIRONMENT
Humidity
5% to 95% Relative Humidity(Non-condensing)
Operating Temperature
0°C to 55°C
Storage Temperature
-15°C to 60°C







Why Choose TANFON solar inverter Products?

3KW Off Grid Solar inverter



1.Sample service:Applicable to quality test,function test etc

2.Repair service:Two year warranty

3.perfect after sales service system:Contact us ,we will help you quickly find the problem,then give you fast service .

4.ODM service:Powerful R&D department can provide professional technical support

5.OEM services:More than 100 pieces ,you can decide the trademark and package

6:quality utmost:Each inverter has tested by power-off test of 100 times per hour.



Solar  inverter solar Seven Management Systems:

Name Picture  Advantage
Supply System 3KW Off Grid Solar inverter



Since the establishment of our inverter factory, we have been purchasing transformers and capacitors from the same supplier.

MOS tube adopts an imported IR brand.

QC System 3KW Off Grid Solar inverter



ICT test, pinhole alignment PCB board, check all lines, reduce the failure rate.

Production System 3KW Off Grid Solar inverter



Wall-mounted inverter board production uses automated machine plug-ins. Improve efficiency, reduce loss, and enhance stability

Factory Inspection System 3KW Off Grid Solar inverter



Our inverter has passed 100 times of ultimate power-off test. According to statistics, 99% of the tested inverter can work very stable.



solar inverter packing&load container:

3KW Off Grid Solar inverter



Certificate

We have ISO9001, CE, RoHS ;have pass COC,IEC62109,The test report will be applied to Algeria, Botswana, Côte d'Ivoire, Ethiopia, Gabon, Ghana, Kenya (PVoC), Kuwait (KUCAS), Lebanon, Libya, Mauritius, Nigeria (SONCAP), Philippines, Qatar, Russia, Saudi Arabia, Tanzania / Sangria Zimbabwe, Zimbabwe and Morocco countries

3KW Off Grid Solar inverter

We accept OEM order, contacting with us now for more information. All inquiries will be replied with in 24 hours.
