Off Grid Solar Inverter
Single phase 2KW off grid solar inverter without battery
Product Specification:- Brand Name : TANFON
- Model Number : T-smart-2K
- Output Power : 2KW
- Output Type : Single phase
You May Like
Product Details
One-stop service
Customer Feedback
Off grid solar inverter without battery advantages:
1) Solar off grid system without battery, 35% cost off compared to traditional solar system
2) Connect generator And PV complementary
3) Wide input voltage range, can adapt to many areas and complex power grid
4) GPRS &WIFI network
Technology date
Tanfon 2KW off grid solar inverter without battery
| Model | TF-smart-2000-24 |
| RATED POWER | 2000VA/2000W |
| INPUT | |
| Voltage | 230 VAC |
| Selectable Voltage Range | 170-280 VAC (For Personal Computers) |
| 90-280 VAC (For Home Appliances) | |
| Frequency Range | 50 Hz/60 Hz (Auto sensing) |
| OUTPUT | |
| AC Voltage Regulation (Batt. Mode) | 230VAC ± 5% |
| Surge Power | 6400VA |
| Efficiency (Peak) PV to INV. | 97% |
| Efficiency (Peak) Battery to INV. | 94% |
| Transfer Time | 10 ms (For Personal Computers) ; 20 ms (For Home Appliances) |
| Waveform | Pure sine wave |
| BATTERY & AC CHARGER | |
| Battery Voltage | 24 VDC |
| Floating Charge Voltage | 27 VDC |
| Overcharge Protection | 33 VDC |
| Maximum Charge Current | 80 A |
| SOLAR CHARGER | |
| Maximum PV Array Power | 4000W |
| MPPT Range @ Operating Voltage | 120 ~ 450 VDC |
| Maximum PV Array Open Circuit Voltage | 500 VDC |
| Maximum Charging Current | 80A |
| Maximum Efficiency | 98% |
| PHYSICAL | |
| Dimension, D x W x H (mm) | 100 x 300 x 440 |
| Net Weight (kgs) | 11.5 |

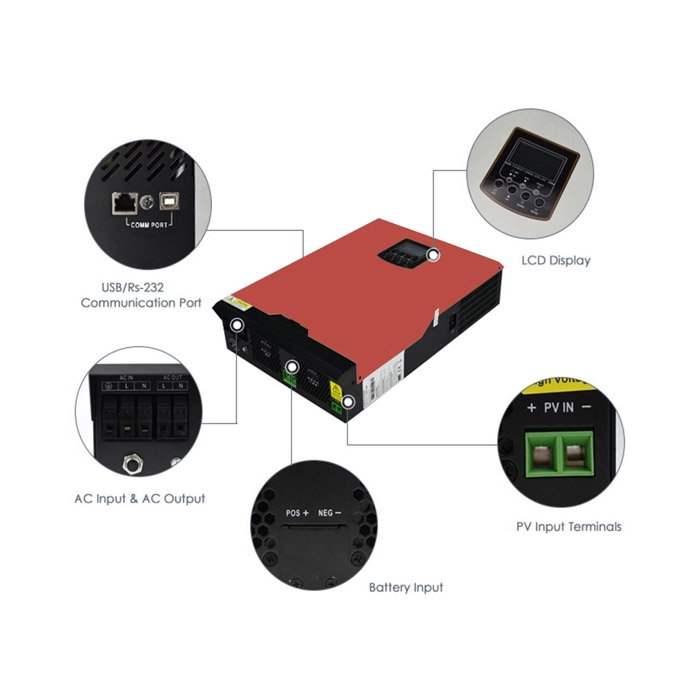

| Communication interface | USB/RS232 |
| OPERATING ENVIRONMENT | |
| Humidity | 5% to 95% Relative Humidity(Non-condensing) |
| Operating Temperature | 0°C - 55°C |
| Storage Temperature | –15°C - 60°C |
| Product specifications are subject to change without further notice | |
Application

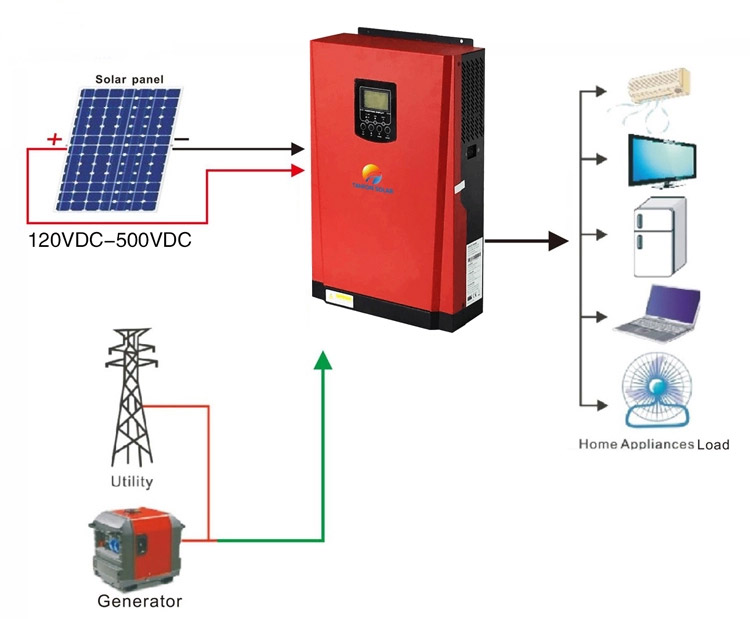

Use for the off grid solar system but without battery
Home solar system
Office solar system
Project
Tanfon factory
Tanfon certificate
We have ISO9001, CE, RoHS etc.
We accept OEM order, contacting with us now for more information. All inquiries will be replied with in 24 hours.
