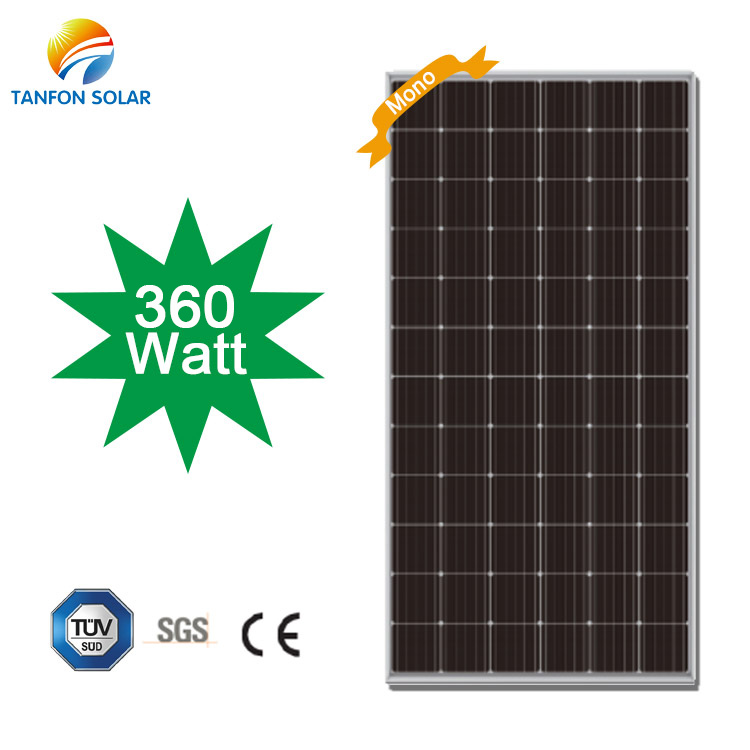

Mono 360 Watt 24v Solar Panel for Home Price

Product Specification:
  • Brand Name : TANFON
  • Model Number : FS360M
  • Warranty : 25-Year
Inquiry Now
Product Details
One-stop service
Customer Feedback



360 Watt Solar Panel

Tanfon solar panel advantages:

1. IP68 Junction Box, Connector

2. 15A current

3. Super strong frame

4. Current division

5. Salt spray, Ammonia and PID test

6. Strong Mechanical load capacity

7. Color Classification

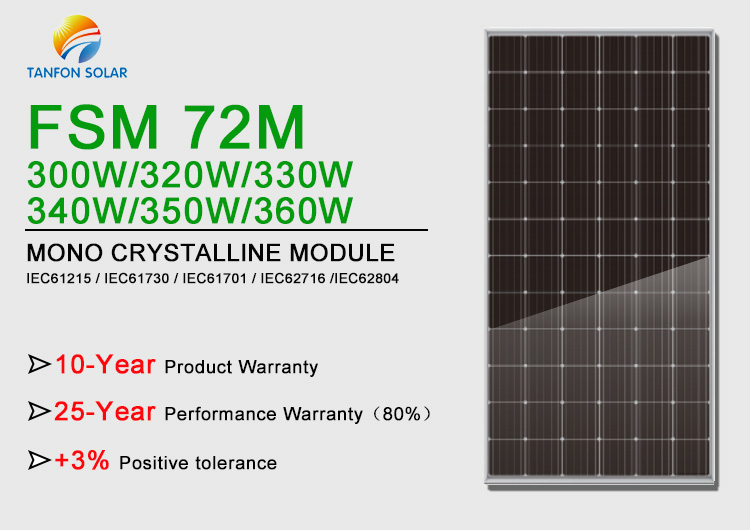

Tanfon 300~360 Watt Mono solar panel

Moduel

FS300M

FS320M

FS330M

FS340M

FS350M

FS360M

Rated Maximum

Power at STC

300W

320W

330W

340W

350W

360W

Open Circuit Voltage(Voc/V)

46V

46.1V

46.34V

46.5V

47.13V

47.13V

Maximum Power Voltage(Vmp/V)

38.7V

38.8V

37.57V

38.2V

39.3V

38.39V

Short Circuit Current(Isc/A)

9.53A

9.65A

9.75A

9.25A

9.35A

9.45A

Maximum Power Current(Imp/A)

9.04A

9.15A

8.78A

9.21A

9.25A

9.37A

Module Efficiency(%)

20.13%

20.39%

20.65%

20.91%

21.17%

21.43%

Power Tolerance

0 ~ +3%

Standard Test Condition(STC)

1000W/m2 irradiance, 25°C cell temperature, AM1.5



 360 Watt Solar Panel



360 Watt Solar Panel



360 Watt Solar Panel

360 Watt Solar Panel

Tanfon 2 set of 200kw solar system in Papua New Guinea

360 Watt Solar Panel

1.2MW mono photovoltaic solar panels roof grid tie project

360 Watt Solar Panel

360 Watt Solar Panel



360 Watt Solar Panel

360 Watt Solar Panel

360 Watt Solar Panel

We accept OEM and small trial orders, contacting with us now for more information. All inquiries will be replied with in 24 hours.

SOLAR POWER SYSTE ALL PARTS: CABLE, SOLAR RACKING, SOLAR INVERTER WITH CONTROLLER, BATERY
