Solar Panel
High efficiency 72cell 320w solar panels for home
Product Specification:- Brand Name : TANFON
- Model Number : TF
- :
You May Like
Why Choose Tanfon?
Quality:
- Each set solar power system has tested by power-off test of 100 times per hour.
Service:
- Pre-sale: Have been served for 120 countries professional teams will free to hlep you to design and big project site survey.
- Selling: Three days per time of follow-up services, video inspection.
- After sales: Engineer can be on-site installation service.
Efficiency:
- Project design solution will send to you quickly within 1 hour
- The fastest will be shipped in 7 days
- The engineer will arrive at the installation site within 10 days after the goods arrived at port.
320W photovoltaic solar panels Features
1) Nominal 24V DC for standard output.
2) High efficiency.
3) Outstanding low-light performance.
4) High transmission tempered glass.
5) Rugged design to withstands high wind pressure and snow load, easy installation.
6) Aesthetic appearance.
7) Design to meet unique demand of customer.
8) 25 year module output warranty.
| photovoltaic solar panels 320 watts characteristics | |
| STC: lrradiance 1000W/m2, Module temperature 25℃, AM=1.5 | |
| Module Type | FS320-24v |
| Maximum power at STC(Pmax) | 320W |
| Optimum operating voltage(Vmp) | 38.39V |
| Optimum operating current(Imp) | 8.33A |
| Open-circuit voltage(Voc) | 47.13V |
| Short-circuit current(Isc) | 10.39A |
| Short-circuit current temperature coefficient | (0.065±0.015)%/℃ |
| Open-circuit voltage temperature coefficient | -(80±10)mV/℃ |
| Peak power temperature coefficient | -(0.5±0.05)%/℃ |
| NOCT (Air 20℃; Sun 0.8kW/m wind 1m/s) | 47±2℃ |
| Operating temperature | -40℃ to 85℃ |
| Maximum system voltage | 600V DC |
| Power tolerance | ±3% |
| Size | 1956*992*40mm |

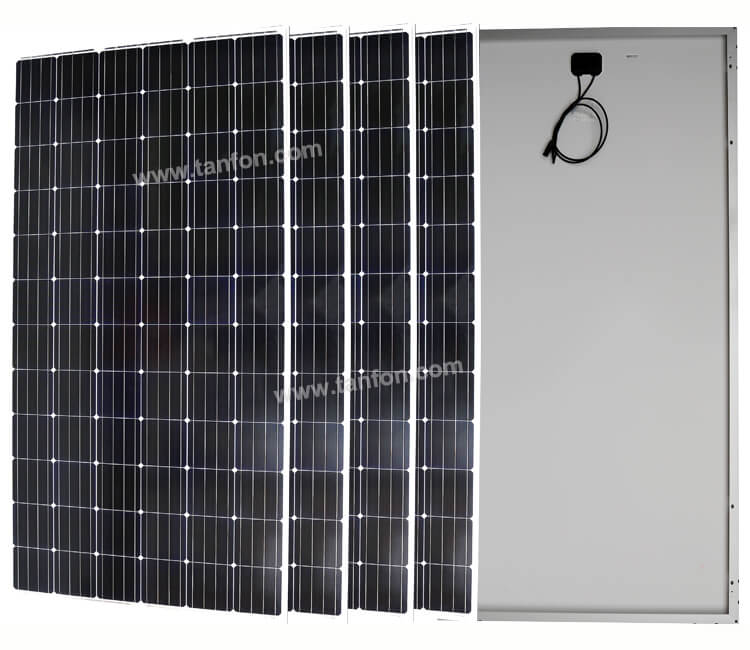

Photovoltaic solar panels 320w
|

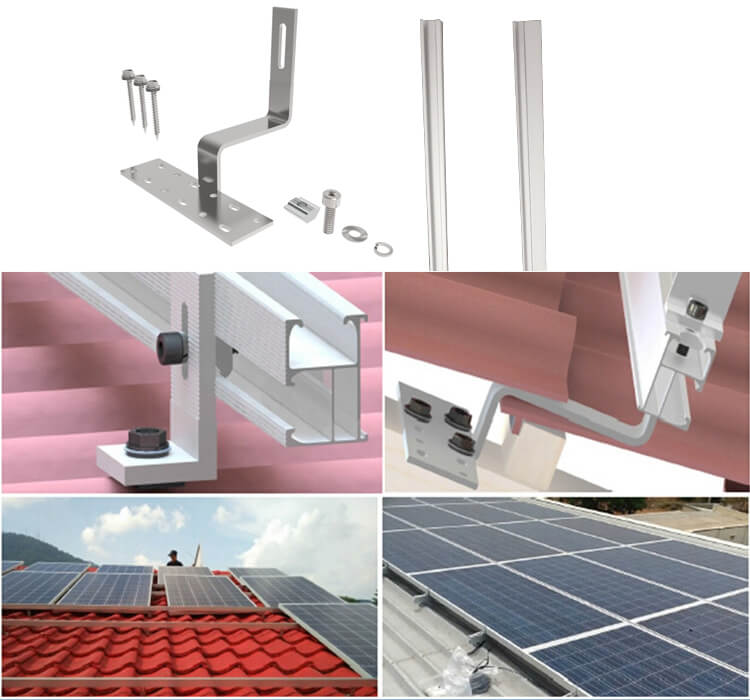

320W photovoltaic solar panels rack supply: Slope Roof, Flat roof or Ground (optional), various material roof panel rack can be suppiled. Structure: Anodized Aluminum and Stainless Steel. Including complete fittings. wind load: 55m/s, snow load: 1.5kn/m2 |
1.2MW mono photovoltaic solar panels roof grid tie project
320W solar panel Factory Pictures
We accept OEM and small trial orders, contacting with us now for more information. All inquiries will be replied with in 24 hours.
SOLAR POWER SYSTE ALL PARTS: CABLE, SOLAR RACKING, SOLAR INVERTER WITH CONTROLLER, BATERY
