Solar Battery

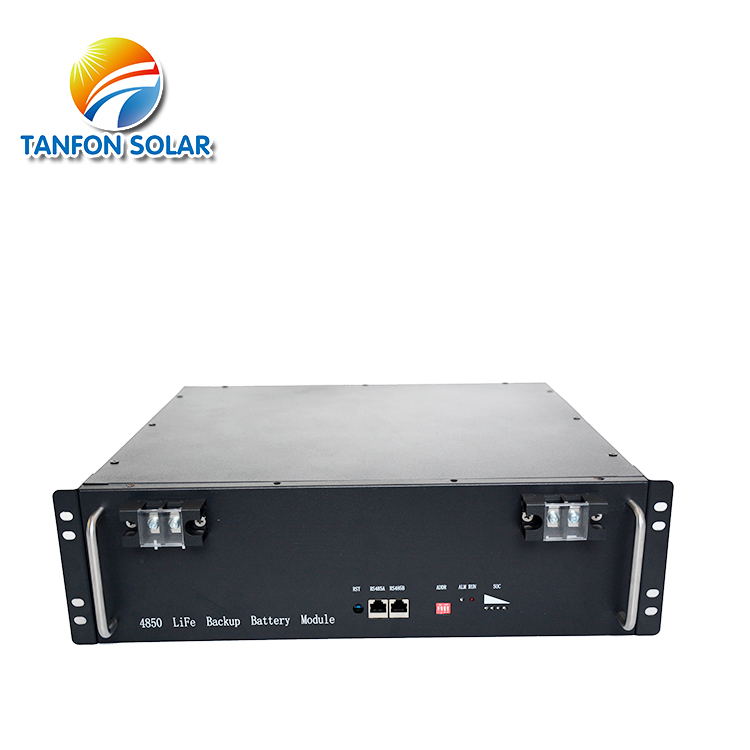

Deep Cycle 48V 100AH LiFePO4 Battery pack for RV/Yacht/Boat/Marine/Robot
Product Specification:- Brand Name : TANFON
- Model Number : 27175200-100Ah
- Combination Standard : 15series 1parallel
- Certificate : ISO, ETL, TUV, CE, RoHS
- Payment : T/T, L/C, Paypal, Western Union
You May Like
Foshan Tanfon Energy Technology Co., Ltd is a professional manufacturer of green energy products with great commitment, contribution heart, and responsibility.
We are specialized in the R&D, manufacture, and sale of high-quality battery(lithium battery,GEL battery), all kinds of pure sine wave inverter(off-grid and on-grid, single-phase and three-phase).
♦Longer Cycle Life : Offers up to 20 times longer cycle life and five times longer float/calendar life than lead acid battery , helping to minimize replacement cost and reduce total cost of ownership
♦Lighter Weight : About 40% of the weight of a comparable lead acid battery . A " drop in" replacement for lead acid batteries
♦Higher Power : Delivers twice power of lead acid battery ,even high discharge rate, while maintaining high energy capacity
♦Wider Temperature Range : -20℃~60℃
♦Superior Safety: Lithium Iron Phosphate chemistry eleminates the risk of explosion or combustion due to high impact overcharging or short circuit situation
Applications :
♦Wheelchairs and scooters
♦Solar/wind energy storage
♦Back-up power for small UPS
♦Golf trolleys & buggies
♦Electric bikes
Products Description
|
Cell
|
Model |
27175200-100Ah |
|
|
Capacity |
100.0 Ah |
||
|
Rated Voltage |
3.2 V |
||
|
Internal Resistance |
≤5mΩ |
||
|
Combination Standard |
A. Capacity Difference≤1% B. Resistance()=0.1～0.2mΩ C. Current-maintaining Ability≥70% D. Voltage3.25～3.30V |
||
|
Combination Method |
15series 1parallel 15S1P |
||
|
Pile Index
|
Rated Capacity |
100Ah |
|
|
Minimal Capacity （0.2C5A） |
98Ah |
||
|
Nominal Voltage |
48.0V |
||
|
Max. Charge Voltage |
54.8V |
||
|
Discharge cut-off voltage |
42.0V |
||
|
Charge Current |
50A |
||
|
Working Current |
50A |
||
|
Output and Input |
P+(red) / P-(black) |
||
|
Weight |
~44.0Kg |
||
|
Dimension （L×W×H） |
442×420×222mm(5Ubox) |
||
|
Charge Method
|
Standard |
20A×5hrs |
|
|
Quick |
50A×2.5hrs. |
||
|
Operating Temperature |
Charge |
-5℃～50℃ |
|
|
Discharge |
-10℃～55℃ |
||
Electric core:
Lithium battery case:
certification:
