TANFON SOLAR
November 19,2024

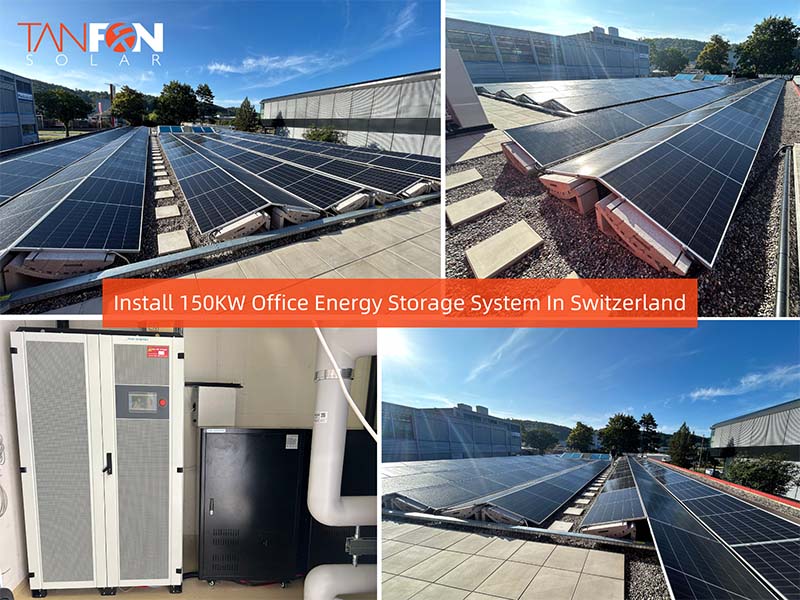

150KW Hybrid Solar Power System for Office Building
This is the 16th solar station we have created for a Swiss client, designed as a hybrid solar system for office use.
Project Highlights:
Functional Requirements: During working hours, the 150KW off on solar system will power the entire company, with excess electricity sold to the Swiss power company. On overcast days, the system can rely on battery backup.
Key Equipment:
288 pieces of 550W N-type solar panels
3 MPPT controllers
1 150KW on/off-grid inverter
480V/600AH lithium battery
Set of rooftop mounts and necessary accessories
System Scale:
Solar panel installation area: 720 square meters
Lithium battery and inverter installation area: approximately 6 square meters
Daily Power Generation: 792KWH;
Energy Storage Capacity: 288KWH
System Advantages:
Supports both grid-tied and off-grid functions
Automatic control of diesel generator operation

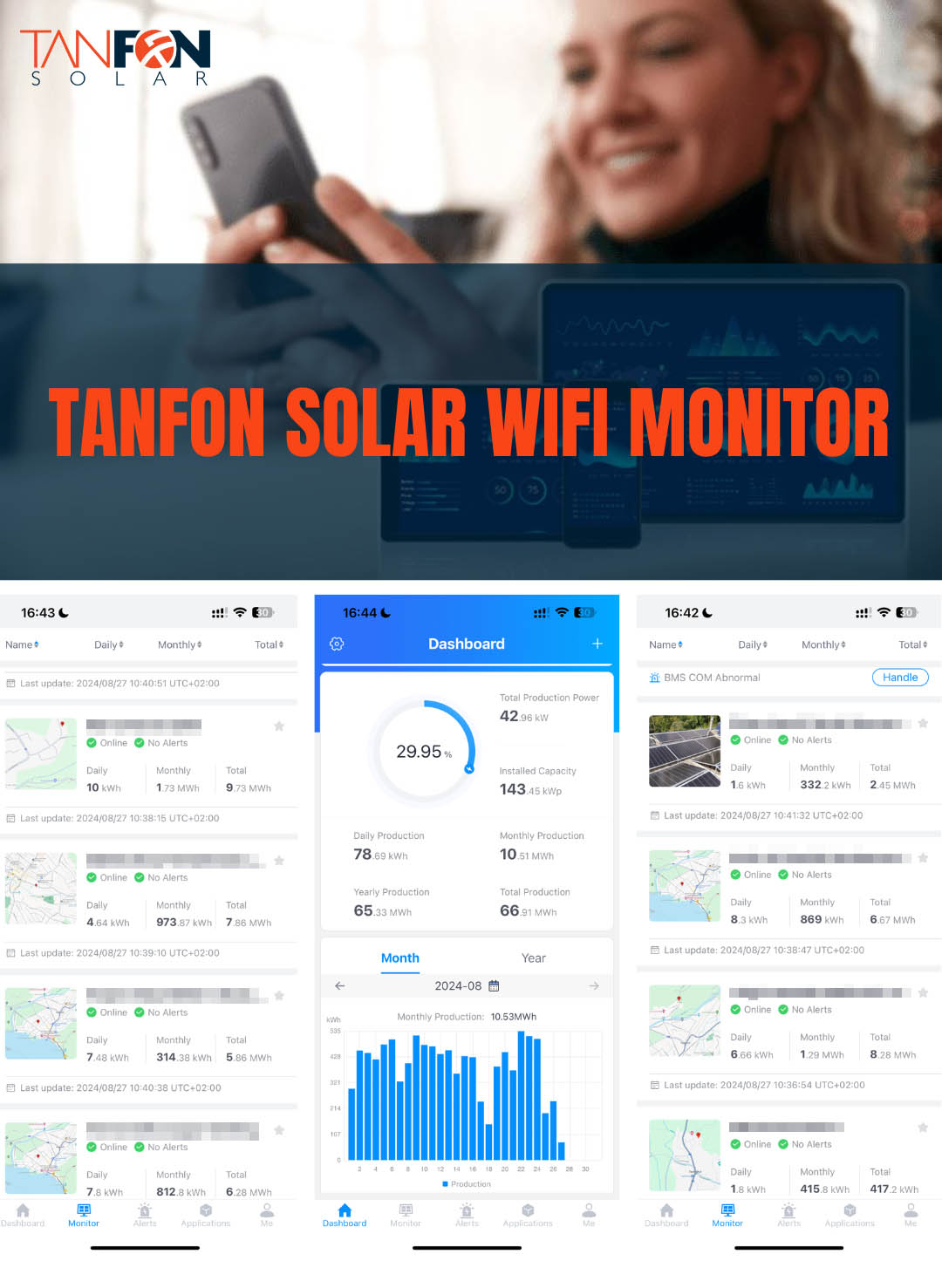

Equipped with an EMS intelligent management system
Online fault diagnosis and free online upgrades
On-site maintenance services provided
If you are also using a solar system in a high-end location, we recommend choosing this high-end custom system. You will not only receive the product but also comprehensive service support from the TANFON team.
